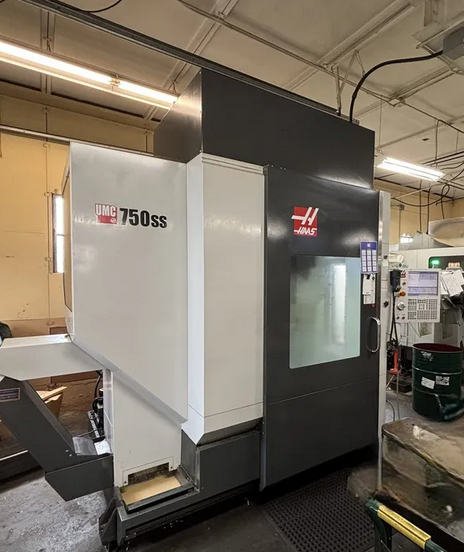

Haas UMC-750SS 5 Axis

X-axis travel: 30 in
Y-axis travel: 20 in
Z-axis travel: 20 in
B-axis (tilt) travel: +120° to -35°
C-axis (rotation) travel: 360°

Control: Haas NextGen Control
Platter diameter: 19.7 in
Table load capacity: 660 lbs
Spindle speed: 15,000 RPM
Spindle motor: 30 HP
Spindle taper: CAT 40

Tool capacity (ATC): 40
Rapid traverse rate: 1200 IPM
Cutting feed rate: 650 IPM
Through spindle coolant
Built-in 5-axis table
4th and 5th axis drives and wiring
Renishaw Wireless Intuitive Probing System (WIPS)
40-position tool changer
Belt-type chip conveyor
Remote jog handle (touch screen)
Dynamic work offsets and tool center point control
Coordinate rotation and scaling
Media display M-code (M130)
High-speed machining
Compensation tables
Spindle orientation (M19)
Rigid tapping
Early power-failure detection module
Wi-Fi connection
Haas remote monitoring
Second home position
Macros
USB port
Ethernet
1GB memory
CT-style tool changer grippers included
Provisioned for mist extraction
Cutting time: 2,095 hours
Machine build date: May 2019
Machine install date: December 2019
Original owner
Machine cut primarily aluminum, brass, and stainless steel
Full replacement cost (as equipped): $281,000
In plant, under power, available for inspection and purchase
