Haas UMC-750SS 5
EUROPE (Western and Northern)

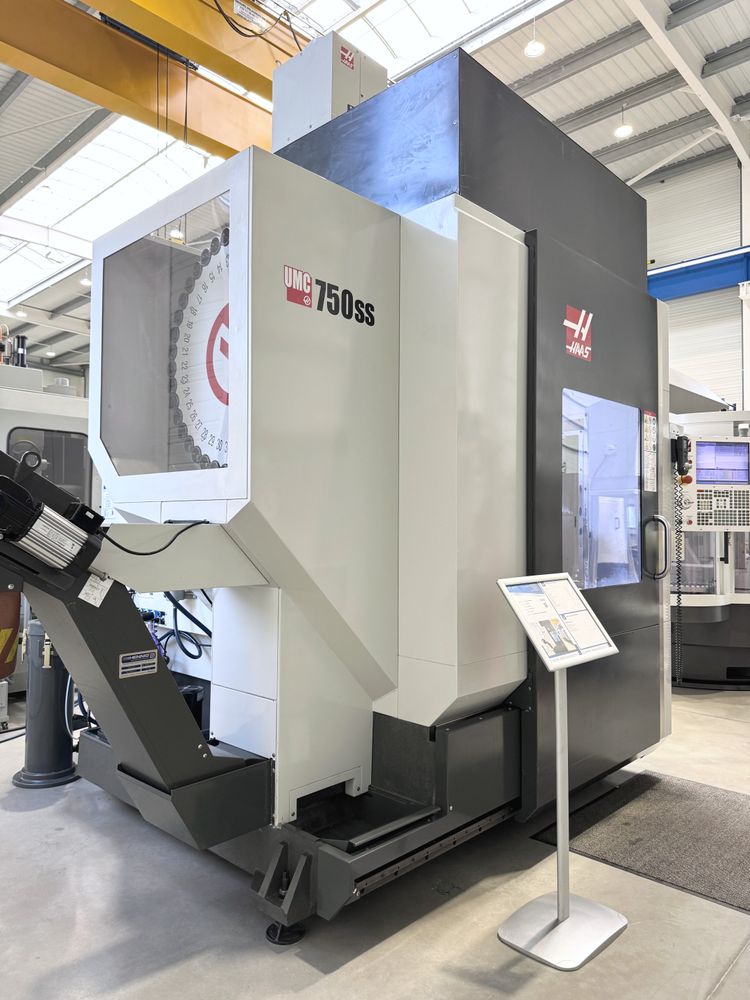

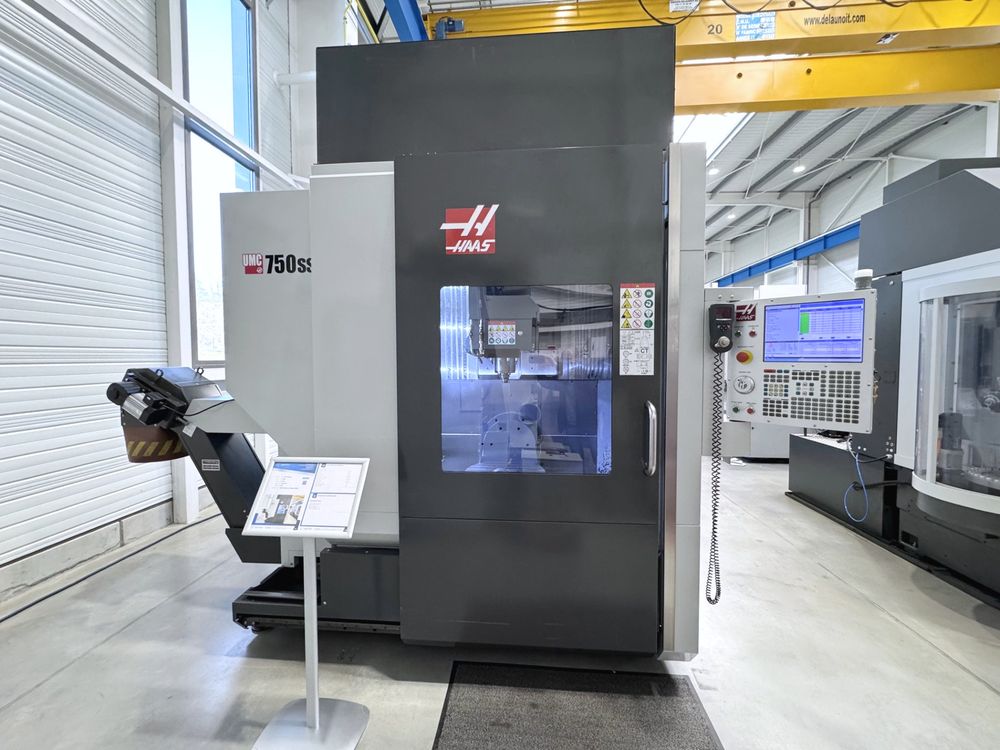

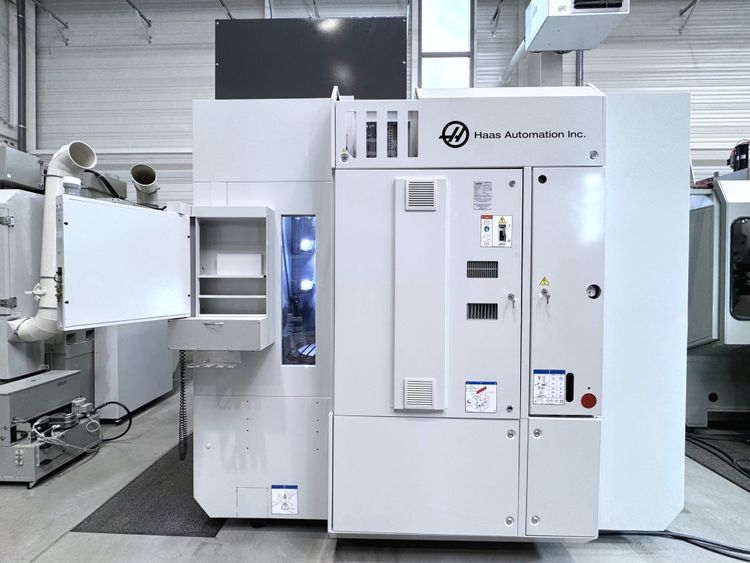

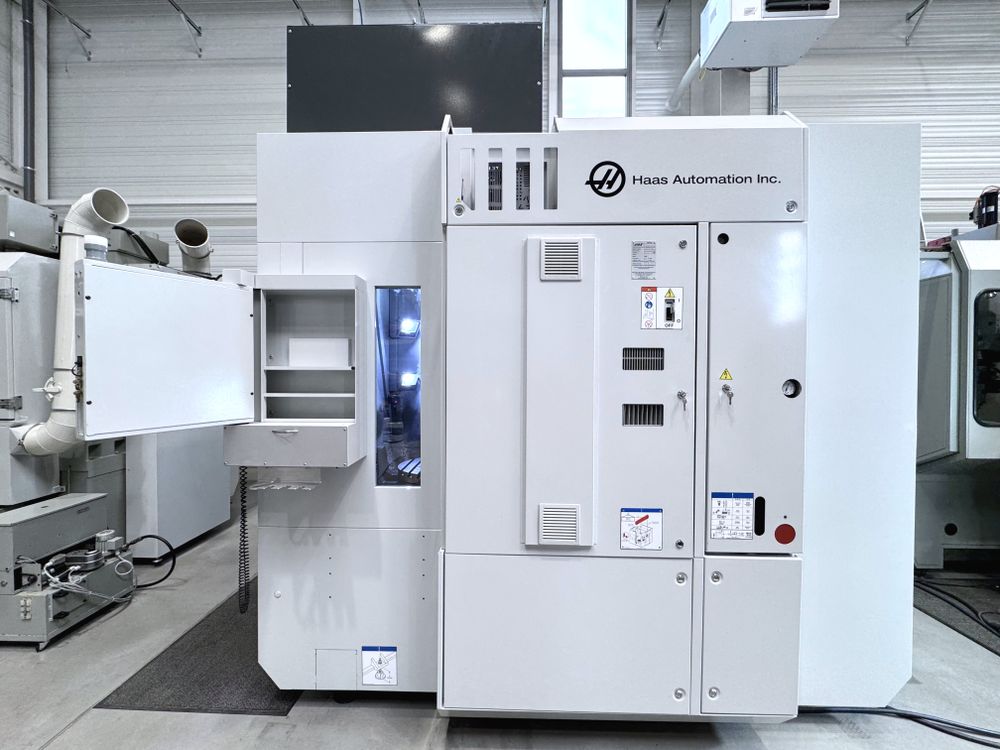

CNC Machining Centre HAAS UMC-750SS
TECHNICAL CHARACTERISTICS:
Year of manufacturing: 2019
Number of simultaneous axes: 5
Stroke X axis: 762 [mm]
Stroke Y axis: 508 [mm]
Stroke Z axis: 508 [mm]
Angular C axis stroke: 360 [°]

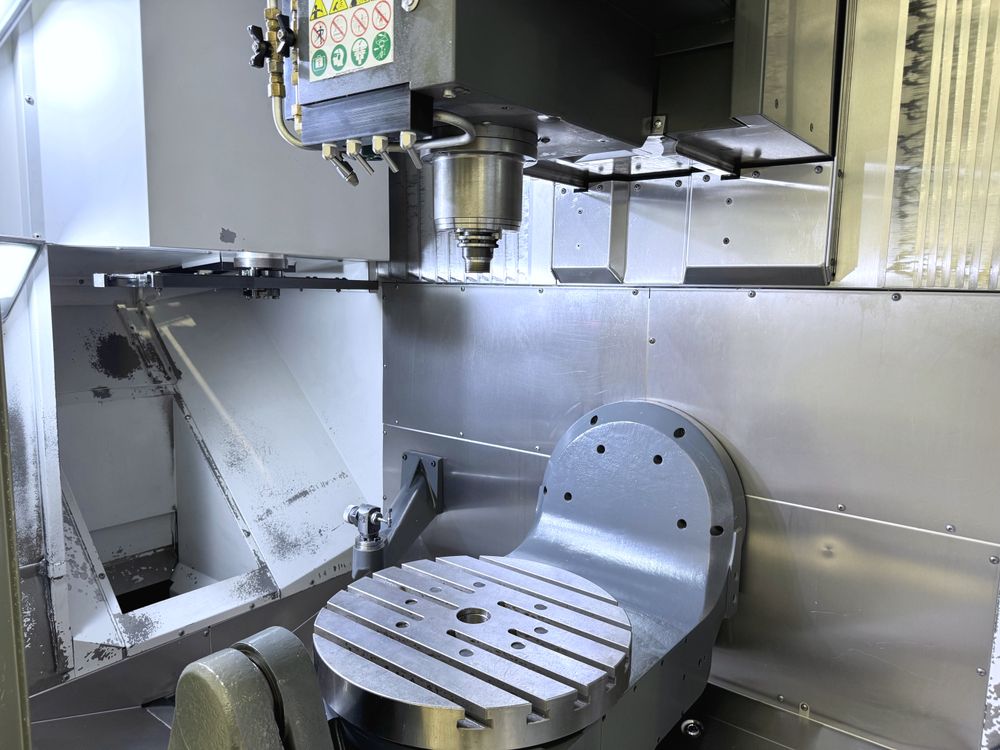

Table dimensions : Ø630 x 500 [mm]
Max. load on table: 300 [Kg]
B axis swivelling stroke: +110 [°] / 350 [°]
Spindle type: CT 40
Max. spindle speed: 15000 [rpm]
Spindle power: 22.4 [kW]
Tool changer magazin number of stations: 40
Lubrication tank capacity: 284 [l]
Number of running hours: 5277 [h]
EQUIPMENT INCLUDED:
x1 through-spindle coolant
x1 high-pressure coolant pump 21 bar
x1 RENISHAW wireless workpiece probe
x1 calibration sphere

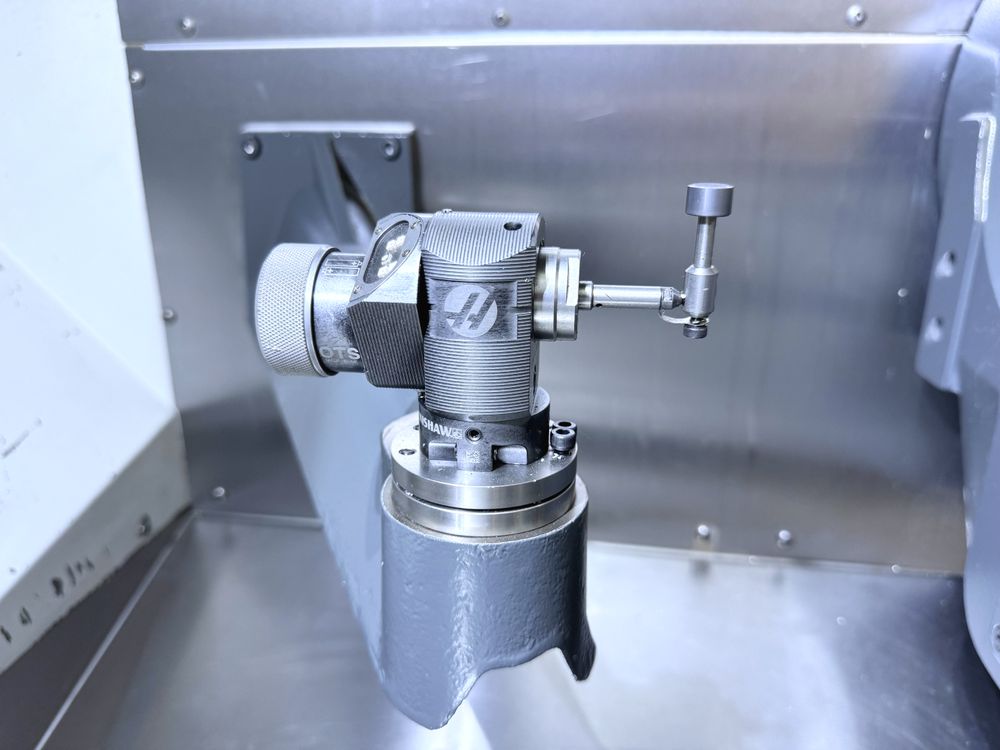

x1 RENISHAW tool probe

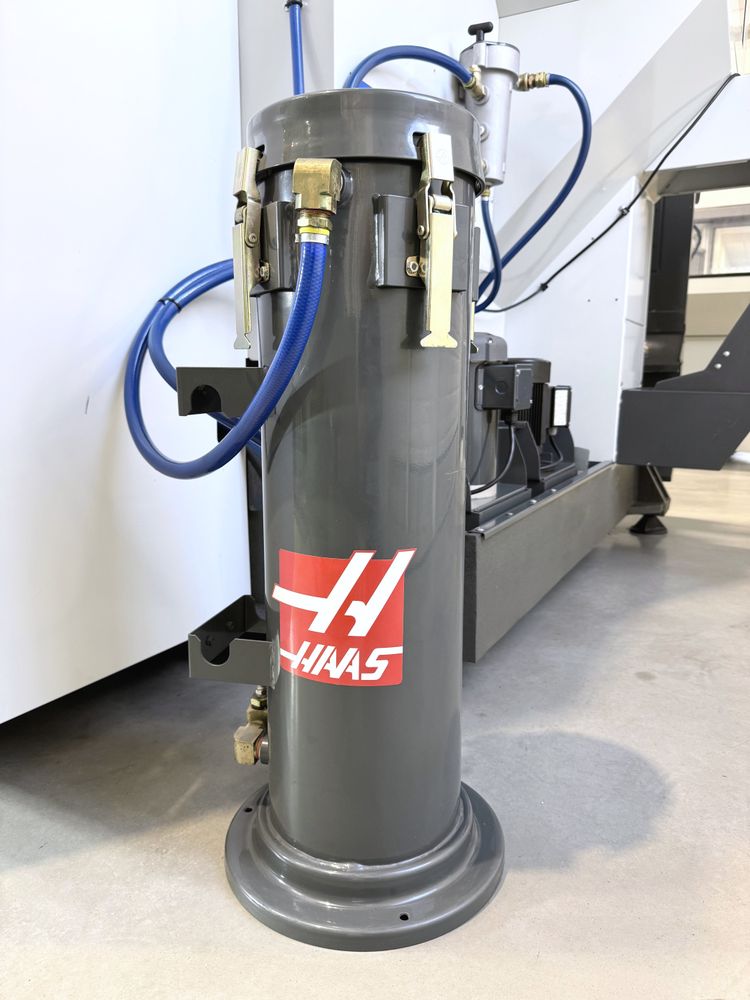

x1 HAAS oil mist extractor
x1 HAAS remote handwheel

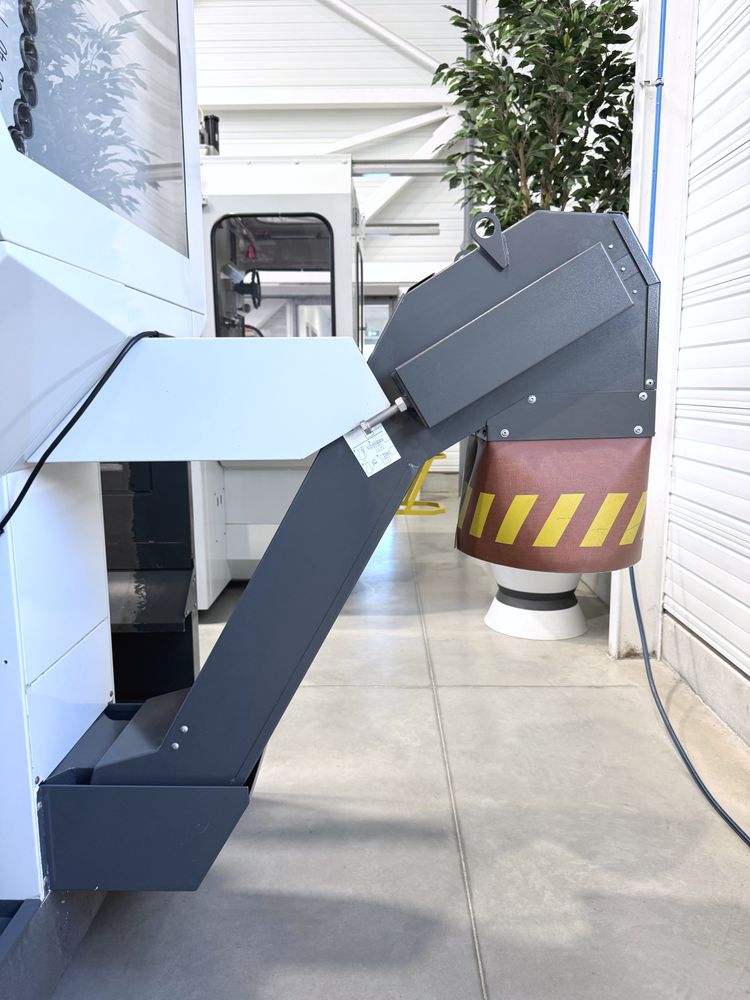

x1 HENNIG chip conveyor, type 101435
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
