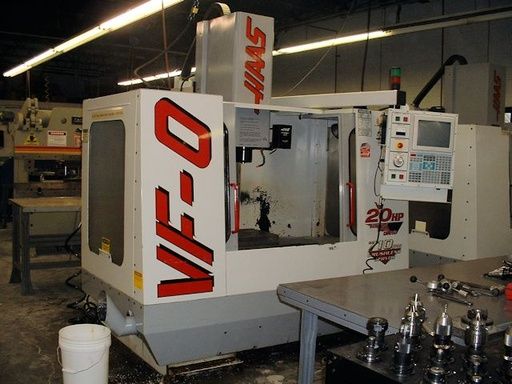

Haas VF-0 3 Axis
AMERICA North (USA-Canada-Mexico)
HAAS VF-0
1999
X travel: 20"
Y travel: 16"
Z travel: 20"
Spindle nose to table (min): 4"
Spindle nose to table (max): 24"
Table size: 36" x 14"
Max table load: 3000 lbs
Spindle speed: 7500 rpm
Spindle torque: 230 ft-lb @ 500 rpm
Spindle taper: CT 40
Spindle drive: 15 HP
Bearing lubrication: air/oil injection
Cooling: liquid cooled
Rapid feedrate (X/Y/Z): 710 ipm
Max cutting feedrate: 300 ipm
Tool capacity: 20
Max tool diameter (full): 3.5"
Max tool weight: 12 lbs
Tool-to-tool change time: 4.2 sec
Chip-to-chip time: 4.5 sec
Positioning accuracy: ±0.0002"
Repeatability: ±0.0001"
Air requirement: 4 scfm @ 100 psi
Coolant capacity: 55 gal
Power requirement: 195–260 VAC / 50 A or 354–488 VAC / 30 A
Machine weight: 7200 lbs
Programmable coolant
3.5" floppy drive
256K memory
Heavy-duty sheet metal enclosure with new windows
Coolant system
32-bit CNC control
Dual RS232 ports
Chip auger system
One-button power-up
Recirculating ball guideways
Automatic lubrication system
Anglock vise
Rigid tapping
Vector dual drive
Brushless motors
