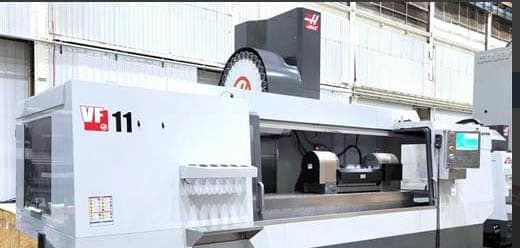

Haas VF-11/50 (5X) 3 Axis

HAAS VF-11/50 (5X)
2013

X-axis travel 3048 mm (120")
Y-axis travel 1016 mm (40")
Z-axis travel 762 mm (30")
Table size 711 x 3048 mm (28" x 120")
Spindle nose to tabletop 127 - 889 mm (5" - 35")
Max table load 1814 kg (4000 lbs)
Spindle speeds up to 7500 rpm
Spindle taper CAT 50
Spindle motor 40 HP
Rapid traverse X-axis 360 ipm
Rapid traverse Y/Z axes 600 ipm
Max tool weight 13.6 kg (30 lbs)
Max tool diameter, non-adjacent 254 mm (10")
Max tool diameter, pockets full 102 mm (4")
Max tool length 406 mm (16")
Approximate machine floor space 6526 x 3531 mm (257" x 139")
Approximate machine height 3505 mm (138")
Approximate machine weight 16,202 kg (35,700 lbs)

Equipped with:
HAAS 5-Axis CNC control
HAAS TR310 CNC trunnion rotary table
30-station side-mounted automatic tool changer
Renishaw wireless intuitive probe system
300 PSI thru spindle coolant
Programmable coolant nozzle
Remote jog handle
Chip auger
