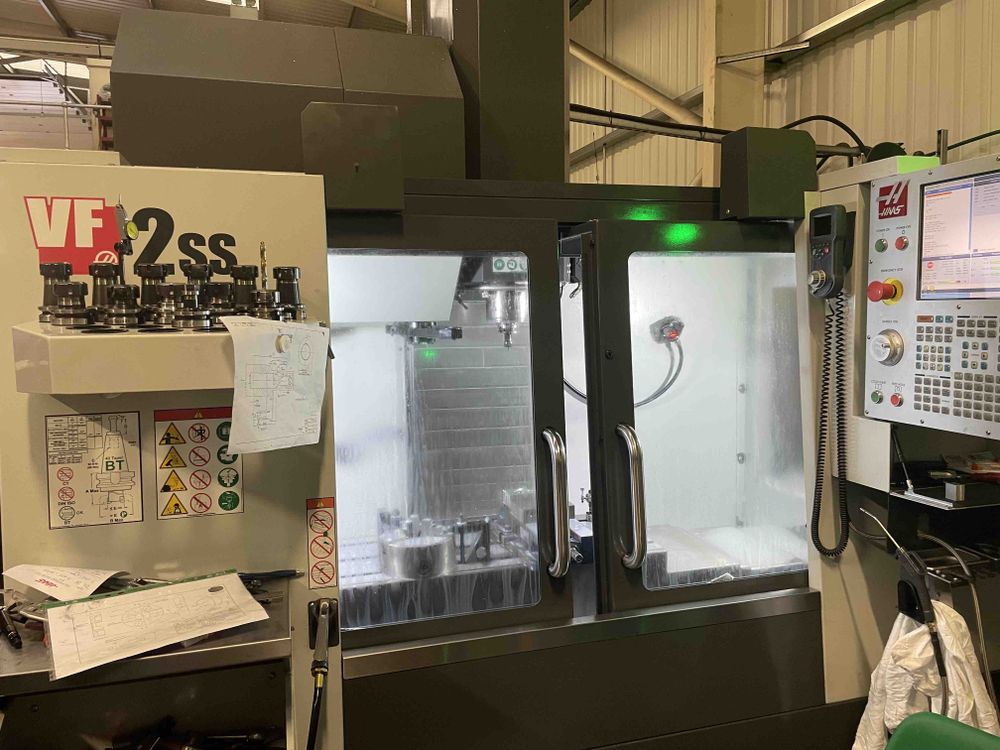

Haas VF-2SS 3 Axis

X-axis travel 762mm
Y-axis travel 405mm
Z-axis travel 510mm
Rapid feedrate 35.6 m/min
Control HAAS
Spindle motor power 40 Hp
Spindle speed 12000 rpm
Spindle taper BT40
Tool change capacity 24 station
Tool change time (chip to chip) 2.2 seconds
Table size 915 × 355 mm
Maximum workpiece weight 680 kg
Minimum–maximum height under spindle 102–610 mm
Machine dimensions 3099 × 2261 × 2743 mm
Machine weight 3629 kg

Coolant system
Interlocked guards
Low-voltage light
Programmable coolant nozzle
Spindle probe
Swarf auger
Tool setter
USB port
WIPS system (Wireless Intuitive Probing System)
