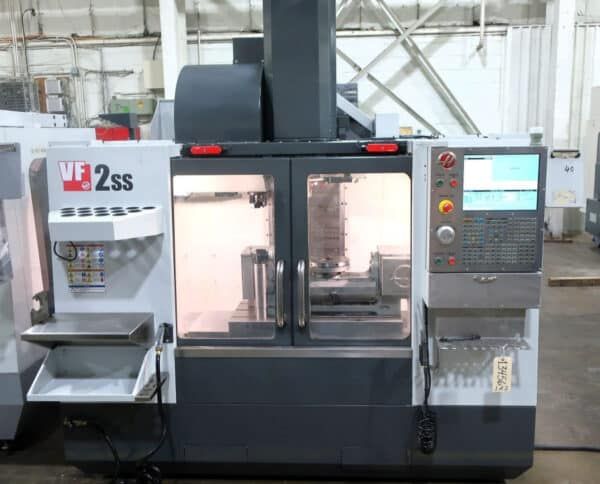

Haas VF-2SS (5-Axis) 5 Axis

X-axis travel: 30″
Y-axis travel: 16″
Z-axis travel: 20″
Spindle nose to table (min): 4″
Spindle nose to table (max): 24″
Table length: 36″
Table width: 14″
T-slot width: 5/8″
T-slot center distance: 4.92″
Number of standard T-slots: 3
Max table load: 1,500 lbs
Spindle power: 30 HP
Spindle speed: 12,000 RPM
Spindle torque: 90 ft-lb @ 2000 RPM
Spindle drive system: inline direct-drive
Spindle taper: BT 40
Spindle bearing lubrication: air/oil injection
Spindle cooling: liquid/cooled
Rapid feed X: 1000 in/min
Rapid feed Y: 1000 in/min
Rapid feed Z: 1000 in/min
Max cutting feedrate: 833 in/min
Tool changer type: SMTC
Tool changer capacity: 24+1
Max tool diameter (adjacent empty): 5″
Max tool diameter (full): 3″
Max tool length: 11″
Max tool weight: 12 lbs
Tool-to-tool time (avg): 1.6 sec
Chip-to-chip time (avg): 2.2 sec
Air required: 4 scfm, 100 PSI
Coolant capacity: 55 gal
Machine weight: 8,000 lbs

CNC control
TR160H trunnion table
24-position side mount tool changer
Renishaw probe
Through-spindle coolant 300 PSI
Programmable coolant nozzle
Chip auger
Coolant filter
Miscellaneous tool holders included
