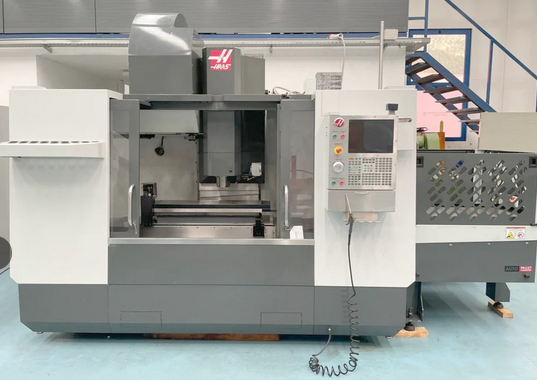

Haas VF-3SSAPC 3 Axis

X-Axis Travel: 1016 mm
Y-Axis Travel: 508 mm
Z-Axis Travel: 635 mm
Table Size: 1219 × 457 mm
Table Load: 794 kg

Pallet System: 2 pallets
Spindle Speed: up to 12,000 rpm
Spindle Power: 22.4 kW
Spindle Nose to Table: 742 mm

Rapid Traverse: 35.6 m/min
Feed Rate: 21.2 m/min

Tool Changer Capacity: 40 tools
Max Tool Diameter: 64 mm (127 mm with adjacent pockets)
Tool Length: 330 mm
Max Tool Weight: 5.4 kg
Tool Change Time: 2.8 sec

Control: HAAS AUTOMATION CNC
Coolant System: 208 L
Air Requirement: 6 bar
Electrical: 400 V / 3 Phase / 50 Hz

Tool Setter: Renishaw
Pallet Changing System: Included
Machine Weight: ~6300 kg
