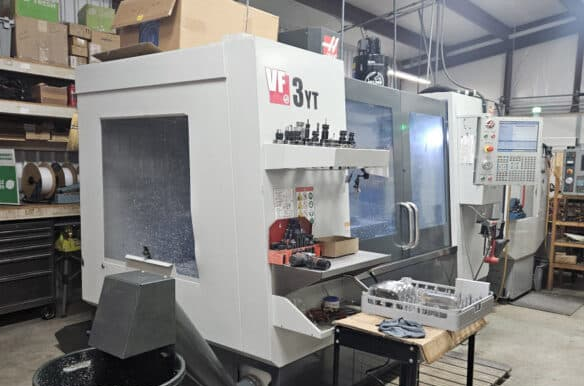

Haas VF-3YT/40 3 Axis

HAAS CNC control
Rotary table
WIPS
Chip auger
X axis travel: 40 in
Y axis travel: 26 in
Z axis travel: 25 in

Spindle nose to table (max): 29.5 in
Spindle nose to table (min): 4.5 in
Rapids on X, Y, Z: 710 in/min
Max cutting: 500 in/min
Table length: 54 in
Table width: 25 in
T-slot width: 5/8 in
T-slot center distance: 3.15 in
Number of T-slots: 5
Max weight on table: 3500 lb
Spindle max rating: 30 hp
Spindle max speed: 8100 rpm
Spindle max torque: 90 ft-lb @ 2000 rpm
Drive system: inline direct-drive
Max torque with optional gearbox: 250 ft-lb @ 450 rpm
Spindle taper: CT40
Bearing lubrication: air/oil injection
Cooling: liquid cooled
Max thrust X, Y: 2550 lb
Max thrust Z: 4200 lb
Tool changer type: carousel
Tool capacity: 20

Max tool diameter (full): 3.5 in
Max tool weight: 12 lb
Tool to tool (avg): 4.2 sec
Chip to chip (avg): 4.2 sec
Air required: 4 scfm @ 100 psi
