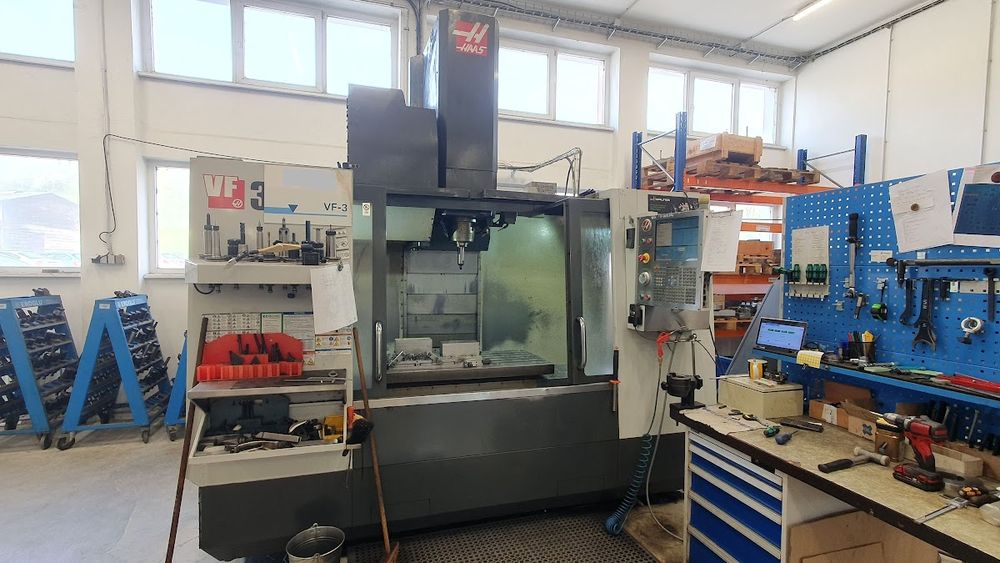

Haas VF-3YT/50

Year: 2011

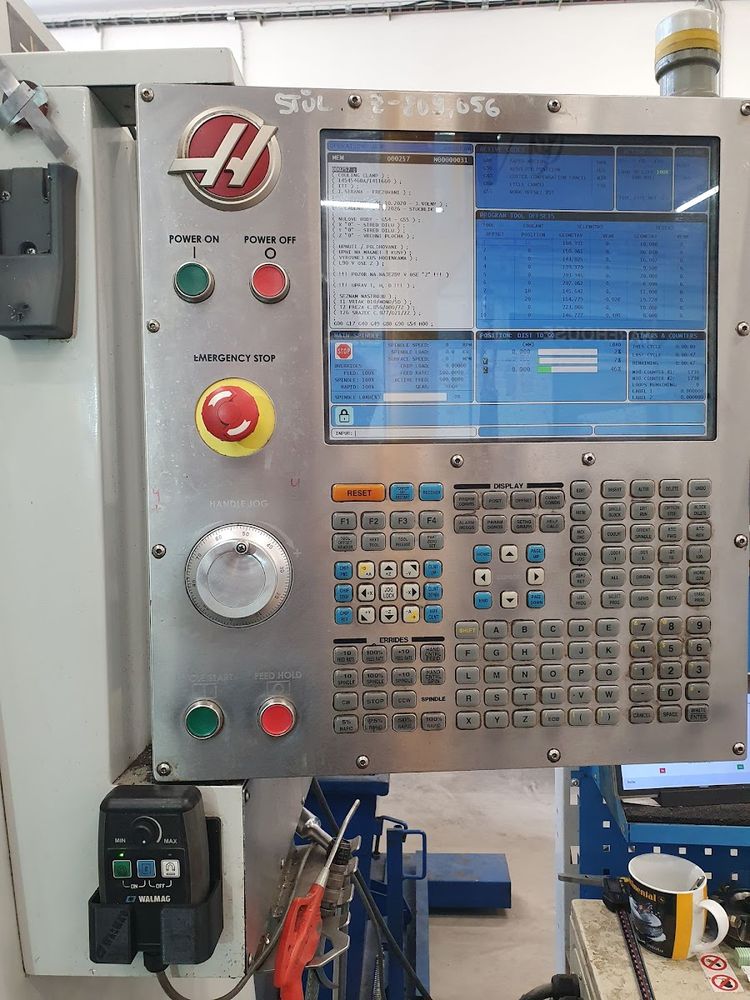

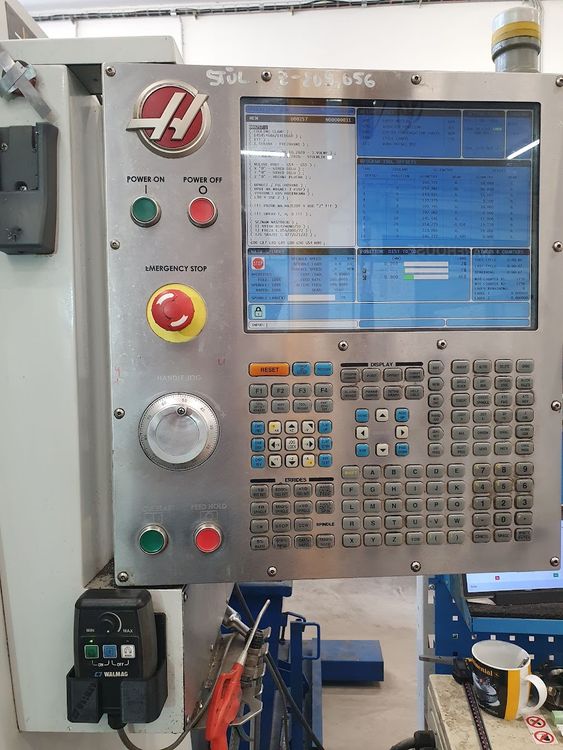

Control system Haas

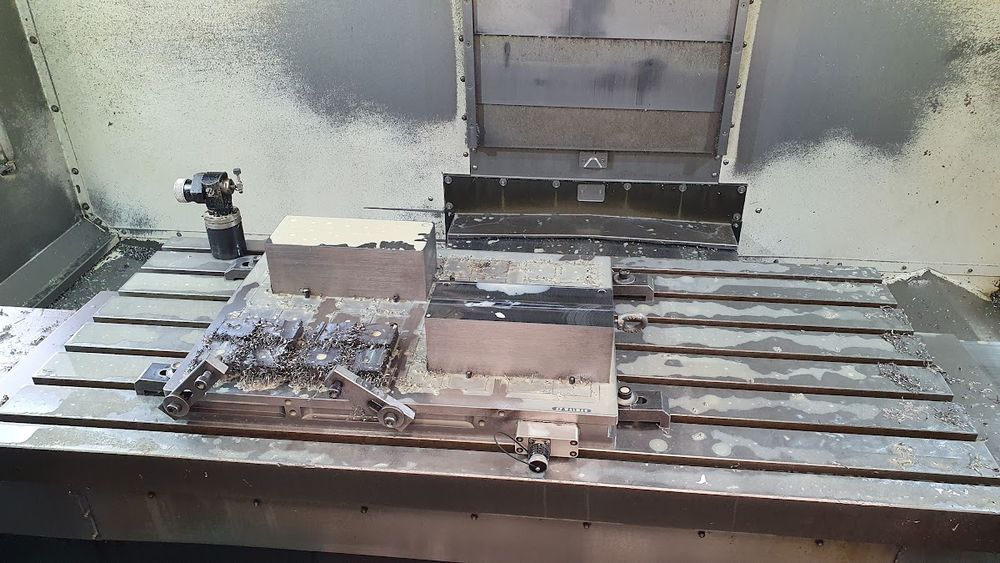

Clamping area of table 1321 x 584 mm
Travel X-axis 1016 mm
Travel Y-axis 660 mm
Travel Z-axis 635 mm
Spindle speed 0 - 7500 /min.
Number of driven axes 4
Cooling through spindle YES
Pressure of cooling 20 bar

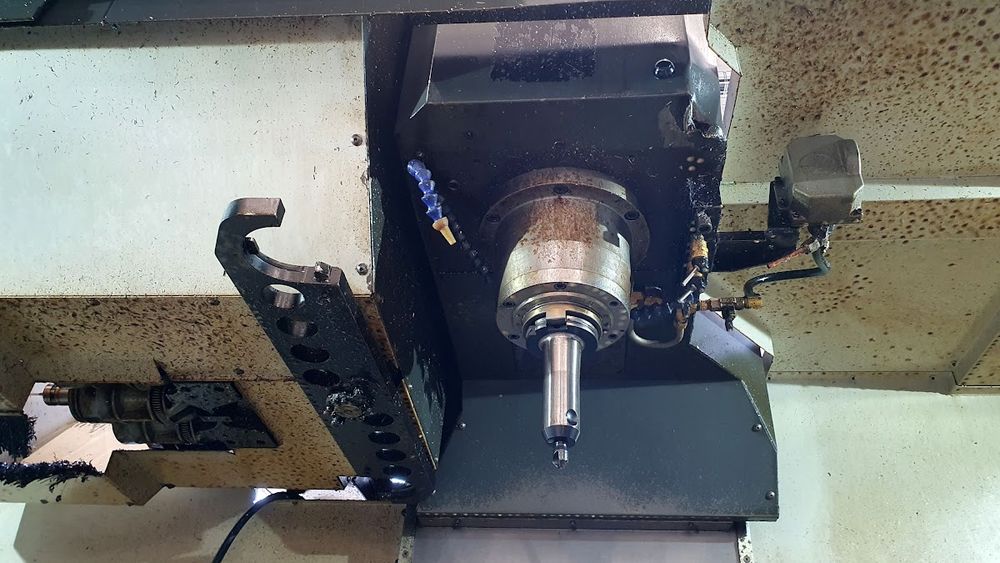

Spindle taper ISO 50 .

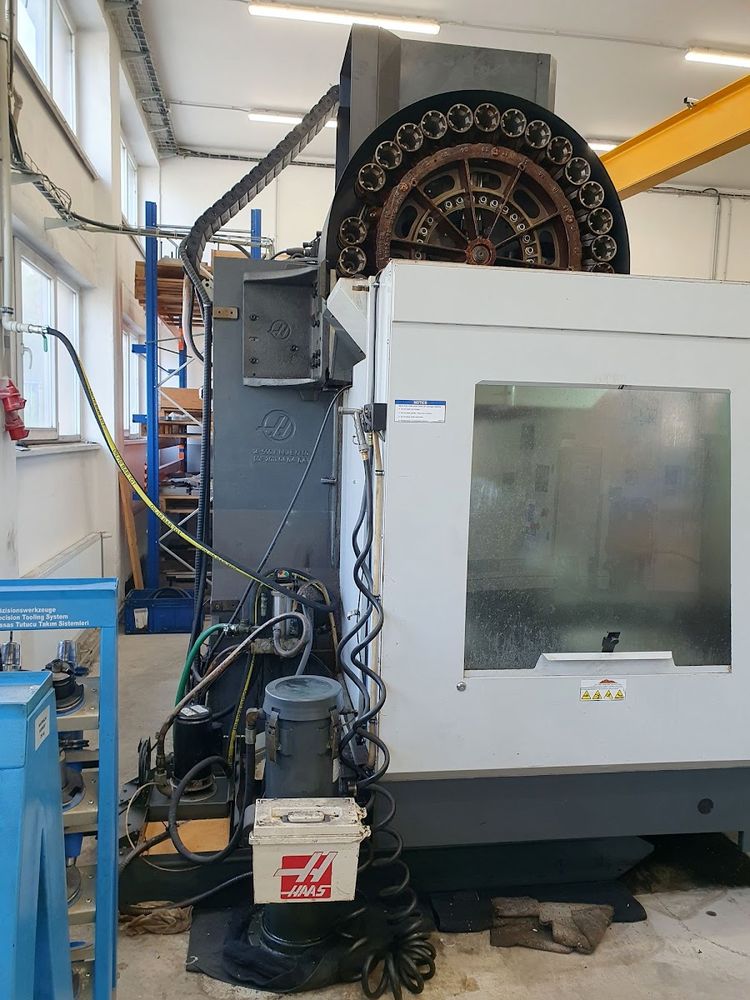

Tool magazine YES
Number of positions in magazine 30
Max. torque of spindle 610 Nm
Machine dimensions l x w x h 4322 x 2495 x 3302 mm

The machine is in good technical condition, testing is possible.
Max. power 22.4 kW, spindle drive via an automatic 2-speed gearbox.

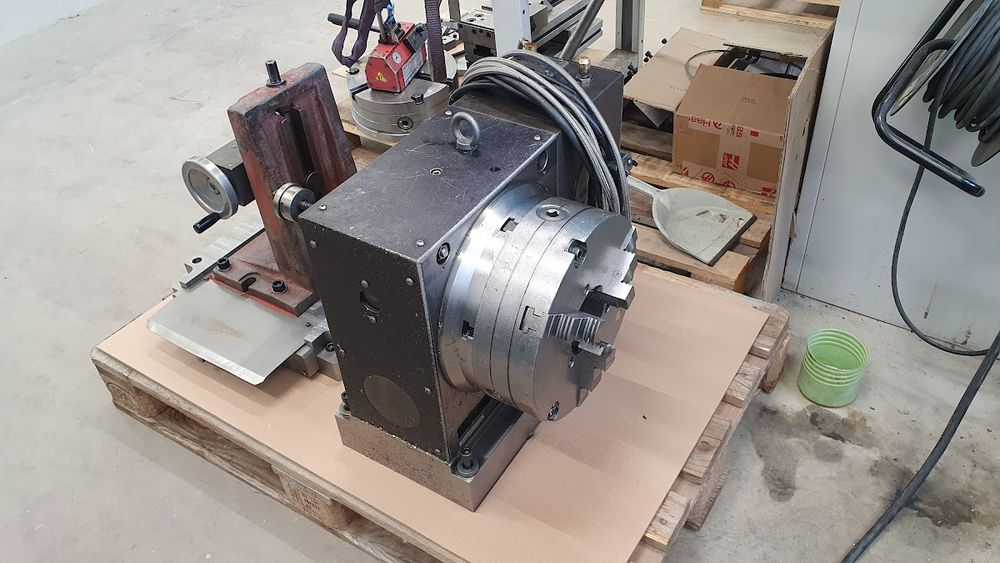

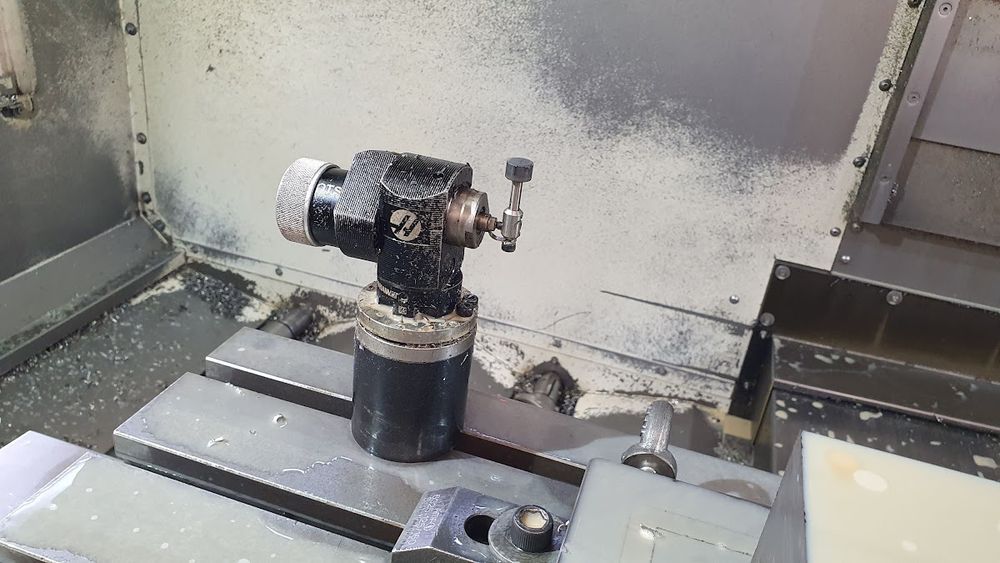

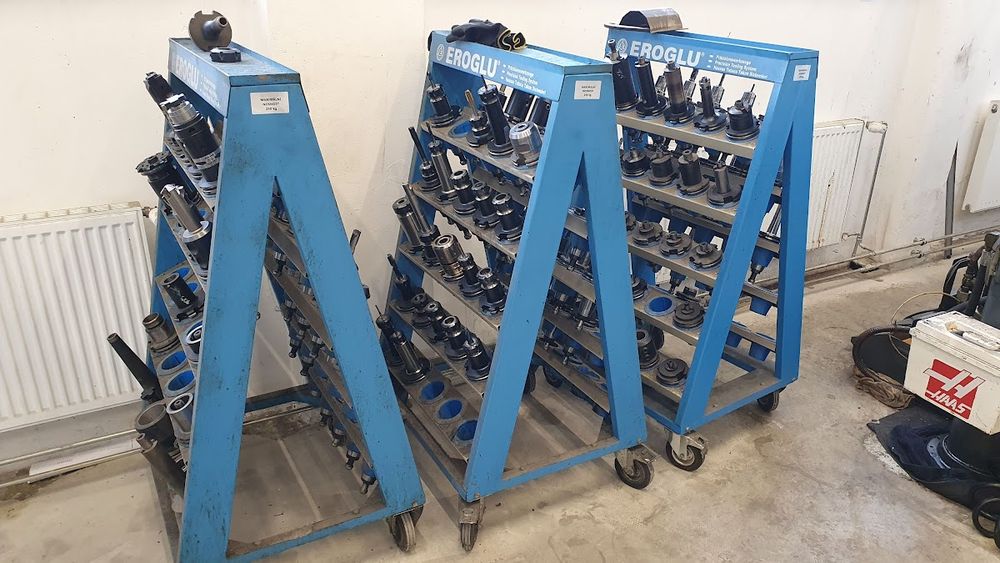

Accessories: 4th axis HAAS HRT 310, Renishaw workpiece and tool probes, tool holders.

The Haas VF-3YT/50 vertical machining center represents a high-performance solution for demanding milling operations requiring stability and power. Thanks to its robust design and integrated Haas control system, the machine is ideal for precise heavy-duty machining of medium-sized workpieces and complex molds. The main benefit is the effective through-spindle coolant system, which significantly improves surface quality and extends tool life during intensive use in professional engineering production.
