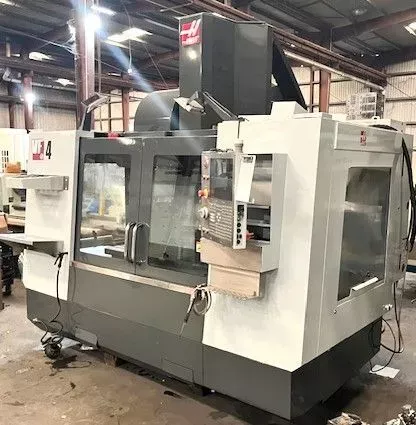

Haas VF-4 3 Axis

HAAS VF-4
Year: 2014

X travel 50.0 in
Y travel 20.0 in
Z travel 25.0 in
Spindle nose to table max 29.2 in
Spindle nose to table min 4.2 in
Spindle power 30.0 hp
Spindle max speed 7000 rpm
Spindle torque 90.0 ft-lbf @ 2000 rpm
Spindle drive system inline direct-drive
Spindle taper CAT 40
Spindle bearing lubrication air/oil injection
Spindle cooling liquid cooled
Table length 52.0 in
Table width 19.5 in
T-slot width 0.626 in to 0.630 in
T-slot center distance 3.15 in
Number of T-slots 5
Max table load 1750 lb
Max cutting feedrate 833 ipm
Rapid traverse X 1400 ipm
Rapid traverse Y 1400 ipm
Rapid traverse Z 1400 ipm
Max thrust X 3085 lbf
Max thrust Y 3085 lbf
Max thrust Z 3925 lbf
Tool changer type SMTC arm type
Tool capacity 30+1
Max tool diameter full 2.5 in
Max tool diameter adjacent empty 5.0 in
Max tool length 13 in
Max tool weight 12 lb
Tool-to-tool time 1.80 s
Chip-to-chip time 2.40 s
Coolant capacity 55 gal
Air consumption 4 scfm @ 100 psi
Inline air hose 3/8 in
Air coupler 3/8 in
Min air pressure 80 psi
Shipping dimensions 152.0 in x 99.0 in x 106.0 in
Machine weight 11720 lb
Input voltage (low) 220 VAC 3-phase
Full load amps (low) 70 A
Input voltage (high) 440 VAC 3-phase
Full load amps (high) 35 A

HAAS CNC control
HAAS HRT-210 rotary table
Full 4th axis
Chuck
30-position tool changer
7000 rpm spindle
CAT 40 taper
Chip auger
Ethernet interface
Programmable coolant nozzle
Rigid tapping
Coolant-through spindle prep
