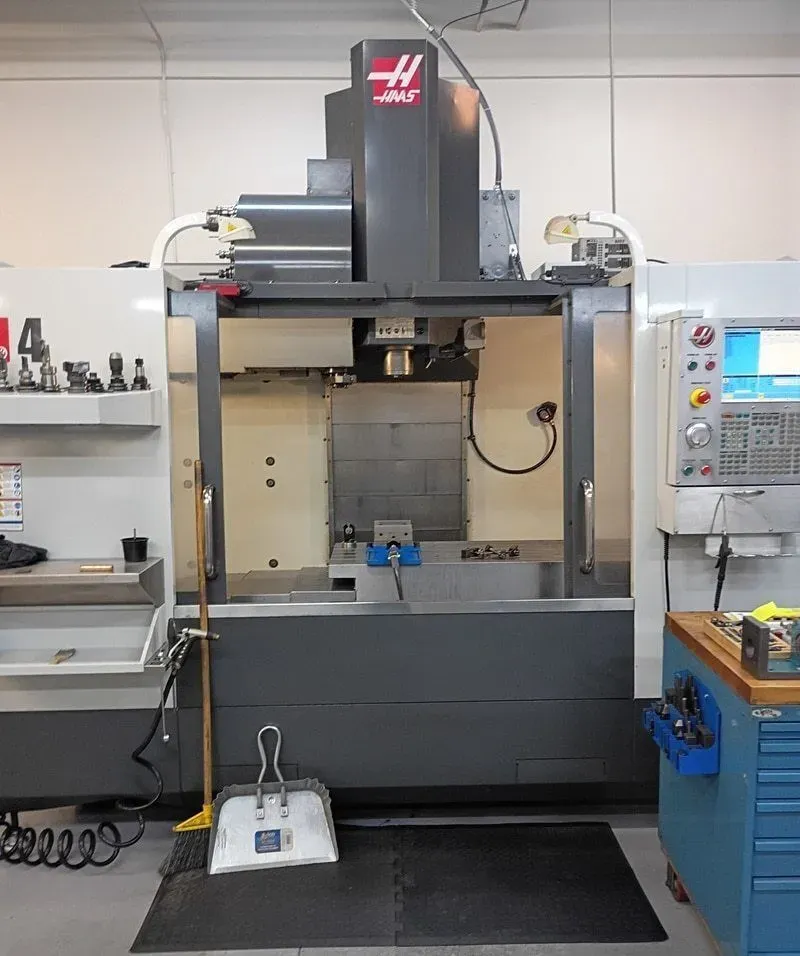

Haas VF-4 3 Axis

X-Axis Travel: 50"
Y-Axis Travel: 20"
Z-Axis Travel: 25"

Table Size: 52" x 19.5"
Max Table Load: 3500 lbs
T-Slot Width: 0.626"
T-Slot Quantity: 5
T-Slot Center Distance: 3.15"

Spindle Speed: 10,000 rpm
Spindle Motor Power: 30 hp
Spindle Torque: 90 ft-lbf @ 2000 rpm (250 ft-lbf @ 450 rpm optional gearbox)
Spindle Drive System: Inline Direct-Drive
Spindle Cooling: Liquid Cooled

Feedrate (Cutting): 650 ipm
Rapid Traverse (X/Y/Z): 1000 ipm

Tool Changer Type: Side Mount Twin Arm
Tool Capacity: 24+1
Max Tool Diameter (Adjacent Empty): 5.0"
Max Tool Diameter (Full): 3.5"
Max Tool Length: 11"
Max Tool Weight: 12 lbs
Tool-to-Tool Time: 2.8 s
Chip-to-Chip Time: 3.6 s

Axis Thrust (X/Y): 2550 lbf
Axis Thrust (Z): 4200 lbf

Coolant Capacity: 55 gal
Air Pressure Min: 80 psi
Air Requirement: 4 scfm @ 100 psi

Control: Haas CNC Control
Wireless Intuitive Probing System (Renishaw)
Rigid Tapping Option
High Speed Machining Option
Through Spindle Coolant Option
Programmable Coolant Nozzle
Prewired for 4th Axis
Haas High Intensity Lighting
Chip Auger
6" Kurt Vise

Machine Dimensions: 120" x 100" x 106"
Machine Weight: 11,720 lbs
