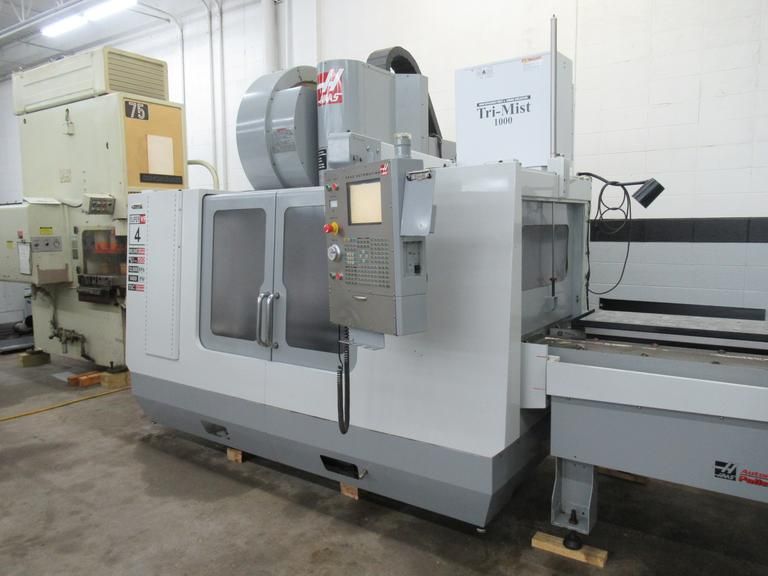

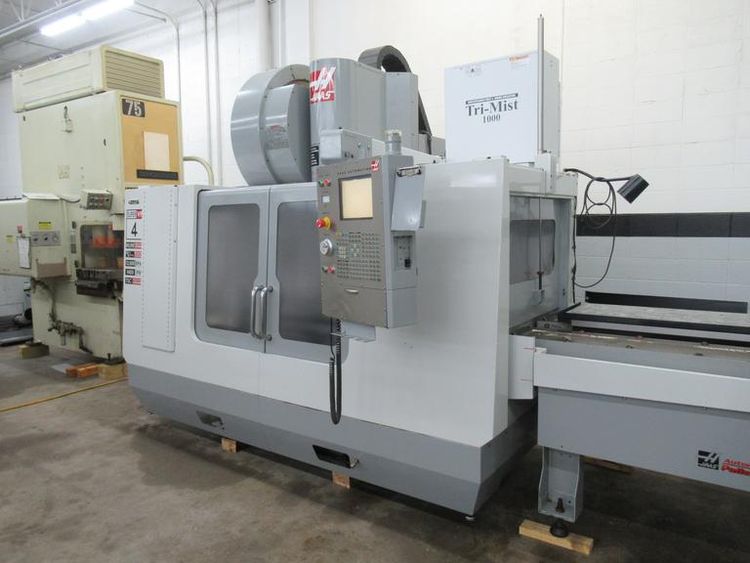

Haas VF-4SS-APC 3 Axis

X-Axis Travel: 50"
Y-Axis Travel: 20"
Z-Axis Travel: 25"
Rapid Traverse X/Y/Z: 1400 IPM
4th Axis Drive
Control: Haas 32 Bit CNC
Visual Quick Code Programming System
Macros
Coordinate Rotation and Scaling
Spindle Orientation
Rigid Tapping
Renishaw Probing System
Part Probe
Tool Probe
High Speed Machining
Programmable Coolant
Through Spindle Coolant
Remote Jog Handle
Automatic Pallet Changer
Number of Pallets: 2
Pallet Change Style: Side Address Shuttle
Chip Auger
Coolant Tank
Keys
Manuals and Documentation
Spindle Speed: 12000 RPM
Spindle Taper: CAT 40
Spindle Drive Power: 30 HP
Max Distance Spindle to Pallet Surface: 26"
Max Part Height Through Pallet Door: 20"
Tool Changer Capacity: 40 Stations
Tool Changer Style: Side Mount Twin Arm
Tool Change Time: 2.8 Seconds
Max Tool Weight: 12 lbs
Pallet Size: 40" x 19"
Max Pallet Load: 1000 lbs
Voltage: 208/230 V
Phase: 3 Ph
Machine Dimensions: 128" x 94" x 111"
Machine Weight: 16000 lbs
