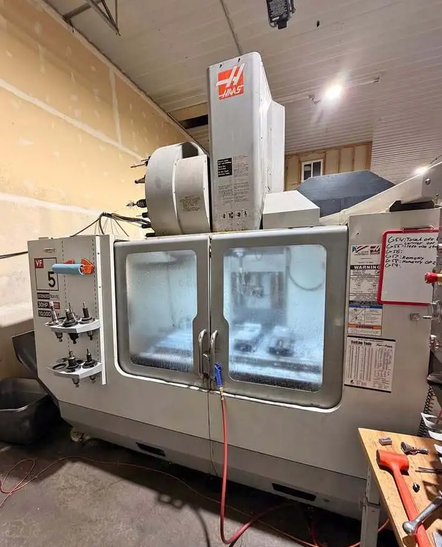

Haas VF-5/50XT 3 Axis

X-Axis Travel: 60"
Y-Axis Travel: 26"
Z-Axis Travel: 25"
Rapid Traverse X-Axis: 540 IPM
Rapid Traverse Y/Z Axes: 710 IPM
Maximum Cutting Feed Rate: 500 IPM
Control: Haas CNC
Probing
2-Speed Gearbox
Programmable Coolant Nozzle
4th Axis Prewire
Spindle Taper: CT50
Spindle Speed: 7,500 RPM
Spindle Power: 30 HP
Maximum Torque: 450 ft-lb @ 500 RPM
ABEC Class 7 Spindle Bearings
Electronic Spindle Orientation
Tool Capacity: 30+1
Automatic Tool Changer
30 Position Side-Mount Tool Changer
Tool Type: CT50
Maximum Tool Diameter: 4"
Maximum Tool Diameter (Adjacent Pockets Empty): 10"
Maximum Tool Weight: 30 lb
Tool Changer Type: Electromechanical, Cam-Driven, Bi-Directional
Tool-to-Tool Change Time: 4.2 sec
Chip-to-Chip Change Time: 6.3 sec
Table Size: 62" × 23"
Maximum Table Load: 4,000 lb
T-Slot Width: 0.625"
T-Slot Center Distance: 3.15"
Spindle Nose to Table: 7.875" - 32.875"
Positioning Accuracy: ±0.0003"
Repeatability: ±0.0002"
Maximum Thrust X-Axis: 5,600 lb
Maximum Thrust Y/Z Axes: 5,600 lb
Full Steel Enclosure
Air Requirement: 4 SCFM @ 100 PSI
Power Requirement: 28 kVA
Electrical: 200-250 VAC or 380-480 VAC, 3-Phase, 50-60 Hz
Machine Dimensions: 148" × 114" × 126.5"
Machine Weight: 16,650 lb
Z-Axis Way Cover Requires Repair
