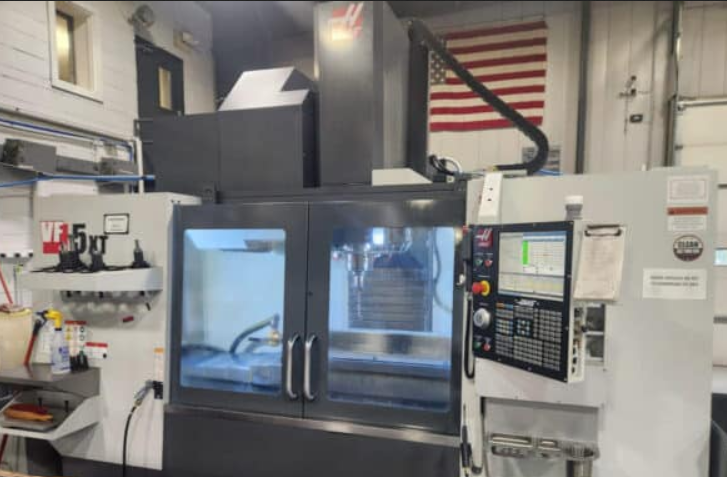

Haas VF-5/50XT 3 Axis

X-Axis Travel: 1,524 mm
Y-Axis Travel: 660 mm
Z-Axis Travel: 635 mm
Rapid Traverse (X/Y/Z): 710 ipm
Control: Haas Next Generation Control
Through-Spindle Coolant
WIPS
Table Size: 1,575 × 584 mm
Maximum Table Load: 4,000 lb
Spindle Speed: 7,500 RPM
Spindle Motor Power: 30 HP
Spindle Torque: 340 ft-lbf @ 700 RPM
2-Speed Gearbox
Spindle Taper: 50
Maximum Cutting Feedrate: 500 ipm
SMTC Tool Changer
Tool Capacity: 30+1
Maximum Tool Diameter: 4.0 in
Maximum Tool Diameter (Adjacent Pocket Empty): 7.0 in
Maximum Tool Length: 16.0 in
Maximum Tool Weight: 30 lb
Tool-to-Tool Time: 4.2 s
Chip-to-Chip Time: 6.3 s
Shipping Dimensions: 168 × 102 × 125 in
Weight: 16,250 lb
