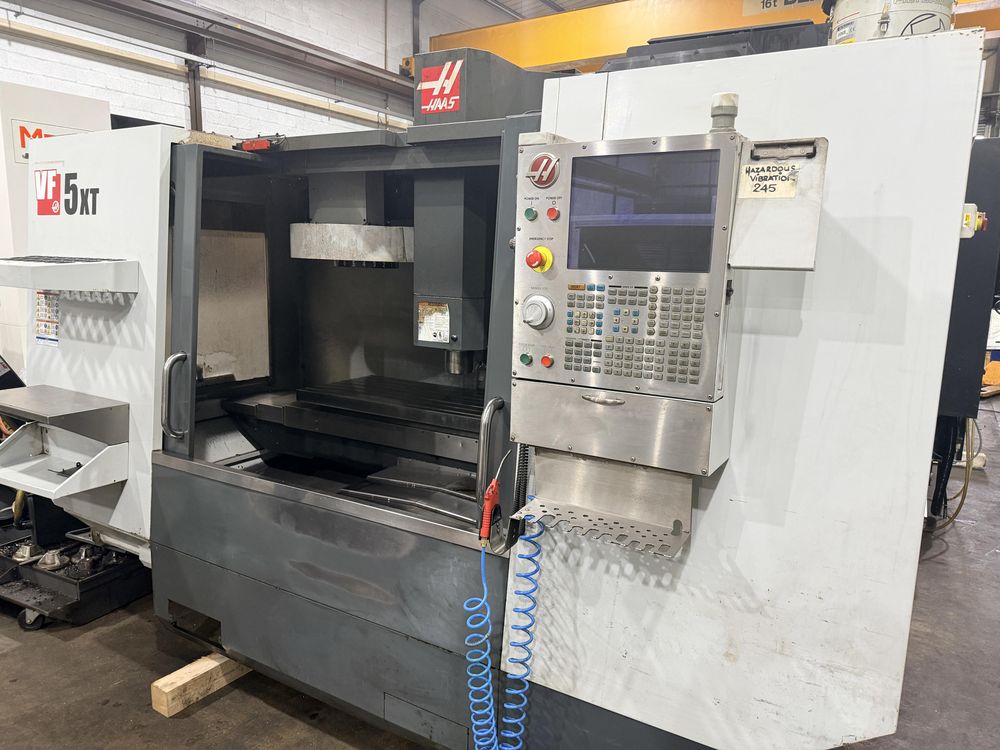

Haas VF-5XT 3 Axis

X-axis travel: 1524 mm
Y-axis travel: 660 mm
Z-axis travel: 635 mm
Rapid feedrate: 18 m/min
Control: Haas
Spindle motor power: 30 hp
Spindle speed: 7500 rpm
Spindle taper: CAT 40
Tool change capacity: 20 stations
Tool change time (chip-to-chip): 4.5 s
Maximum tool diameter: 89 mm
Maximum tool weight: 5.4 kg
Table size: 1575 x 584 mm
Maximum workpiece weight: 1814 kg
Spindle-to-table distance (min): 107 mm
Spindle-to-table distance (max): 742 mm

Features / Options / Equipment
Coolant system
Interlocked guards
Low-voltage work light
Programmable coolant nozzle
Swarf auger
