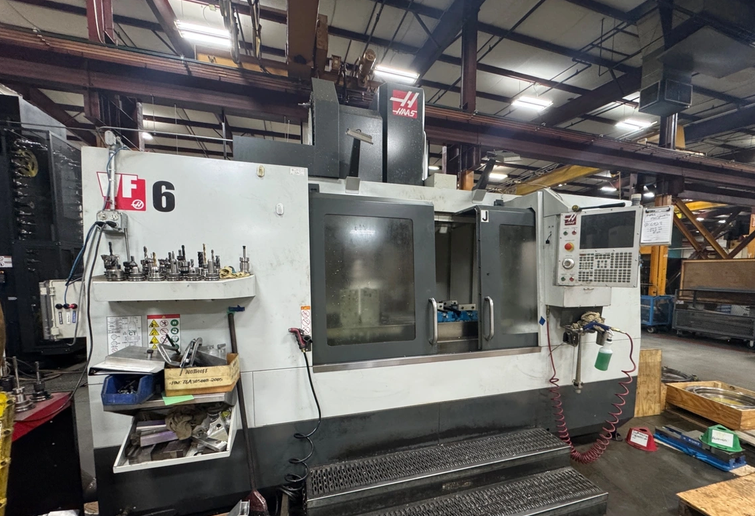

Haas VF-6/40 3 Axis

X-axis travel: 64 in
Y-axis travel: 32 in
Z-axis travel: 30 in
CNC control
3-axis
Coolant capacity: 95 gal
Air requirement: 4 SCFM @ 100 PSI
Electrical: 220 VAC / 3 Ph / 70 A
Spindle nose to table: 4.0–34.0 in
Spindle speed: 8,100 RPM
Spindle motor: 30 HP
Maximum torque: 90 ft-lb @ 2,000 RPM
Spindle taper: CAT 40
Rapid traverse (X/Y/Z): 600 IPM
Maximum cutting feedrate: 500 IPM
Tool changer: 50+1 side-mount ATC
Maximum tool diameter: 2.5 in
Maximum tool diameter (adjacent pocket empty): 5.0 in
Maximum tool length: 16 in
Maximum tool weight: 12 lb
Tool-to-tool time: 2.8 sec
Chip-to-chip time: 3.6 sec
Table size: 64 × 28 in
Maximum table load: 4,000 lb
Dimensions: 165 × 100 × 106 in
Weight: 22,300 lb
