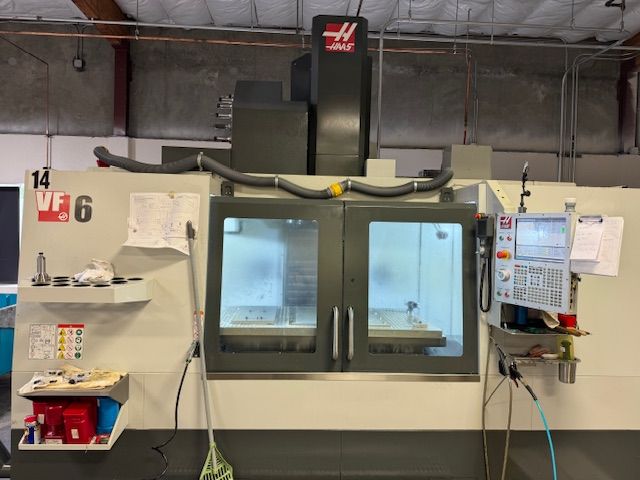

Haas VF-6/50 3 Axis

X-Axis Travel: 64"
Y-Axis Travel: 32"
Z-Axis Travel: 30"
Spindle Nose to Table: 5"–35"
Maximum Cutting Feed Rate: 500 IPM
X-Axis Rapid Traverse: 600 IPM
Y-Axis Rapid Traverse: 600 IPM
Z-Axis Rapid Traverse: 600 IPM
Haas Next Generation Control
Two-Speed Gearbox
Liquid-Cooled Spindle
Table Size: 64" × 28"
5 T-Slots
Maximum Table Load: 4,000 lbs.
Spindle Speed: 7,500 RPM
Spindle Motor: 30 HP
Maximum Torque: 340 ft-lbs. @ 700 RPM
Spindle Taper: CAT 50 / CT 50
Tool Capacity: 30+1
Side-Mount Automatic Tool Changer
Maximum Tool Diameter: 4"
Maximum Tool Diameter (Adjacent Pockets Empty): 10"
Maximum Tool Length: 16"
Maximum Tool Weight: 30 lbs.
Coolant Tank Capacity: 95 gallons
Electrical Requirement: 220V, 3-Phase, 70 A
High-Voltage Configuration: 440V, 3-Phase, 35 A
Air Requirement: 4 SCFM @ 100 PSI
Minimum Air Pressure: 80 PSI
Shipping Dimensions: 195" × 102" × 131.5"
Machine Weight: 25,500 lbs.
