Haas VF‑6SS 4‑Axis CNC Mill 3 Axis

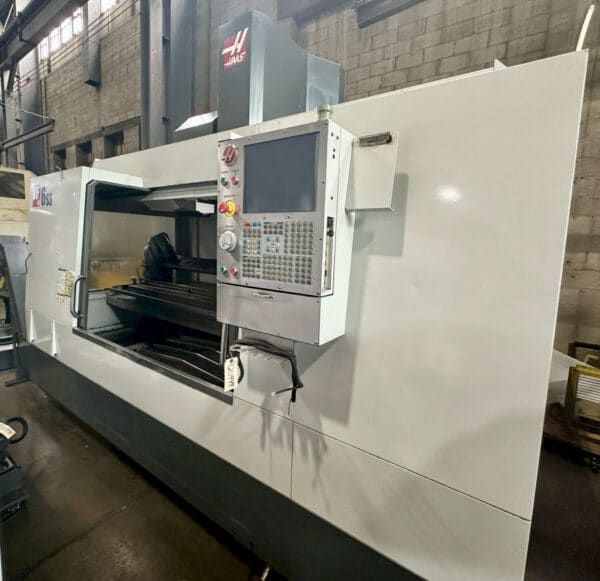

HAAS VF‑6SS 4‑Axis CNC Mill
Year: 2010

CNC control: Haas CNC
Number of axes: 4
Table size: 64″ × 28″
Table load capacity: 2,000 lb
X‑axis travel: 64″
Y‑axis travel: 32″
Z‑axis travel: 30″
Max tabletop‑to‑spindle nose clearance: 34″
Min tabletop‑to‑spindle nose clearance: 4″
All‑axes feed rate: 833 IPM
X‑axis rapid traverse: 900 IPM
Y‑axis rapid traverse: 1,200 IPM
Z‑axis rapid traverse: 1,200 IPM
Spindle power: 40 hp
Max spindle speed: 12,000 RPM
Spindle taper: CAT 40
Max torque: 90 ft‑lb @ 2,000 RPM
ATC capacity: 24 tools
ATC style: side‑mount
Electrical: 440 V, 3‑phase, 60 Hz
Approximate footprint: 204″ × 108″
Approximate height: 123″
Approximate weight: 22,300 lb

Equipped with Haas CNC control
Equipped with 12″ HRT‑310 Haas 4th‑axis rotary (set up as trunnion)
Equipped with 39″ × 9″ rotary table
Equipped with 12,000 RPM spindle
Equipped with programmable coolant nozzle
Equipped with chip conveyor
Equipped with coolant tank
