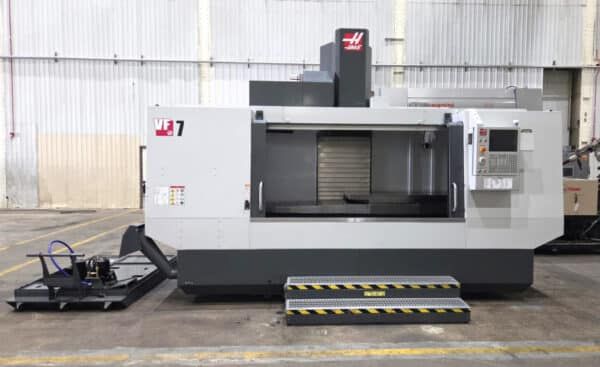

Haas VF-7/40 3 Axis

X-Axis Travel: 84"
Y-Axis Travel: 32"
Z-Axis Travel: 30"
Spindle Nose to Table: 4"–34"
Max Cutting Feed Rate: 500 IPM
Rapid Traverse X/Y/Z: 600 IPM
Control: Haas NextGen CNC
Remote Jog Handle with Touch Screen
WiFi Connection
4th-Axis Ready
Brushless 4th Axis Drive
Renishaw Probing System
Part Probe
Tool Setter
High Speed Machining
Rigid Tapping
Programmable Coolant
300 PSI Through-Spindle Coolant
Coolant Tank
Coolant Pumps
Haas Window Blast
Chip Auger
Spindle Motor: 20 HP
Spindle Speed: 10,000 RPM
Maximum Torque: 250 ft-lbf @ 450 RPM
Drive System: Inline Direct Drive
Spindle Taper: CAT 40
Table Size: 84" × 28"
Maximum Table Load: 4,000 lbs
T-Slots: 5
T-Slot Width: 0.626" × 0.630"
T-Slot Center Distance: 4.92"
Automatic Tool Changer: Side-Mounted
ATC Capacity: 30 + 1
Maximum Tool Diameter (Adjacent Full): 2.5"
Maximum Tool Diameter (Adjacent Empty): 5.0"
Maximum Tool Diameter (Extra Large, Adjacent Empty): 6.0"
Maximum Tool Length: 16"
Maximum Tool Weight: 12 lbs
Machine Weight: 25,600 lbs
30-Position Side-Mounted Automatic Tool Changer
10,000 RPM 2-Speed Geared Head Spindle
CAT 40 Spindle Taper
