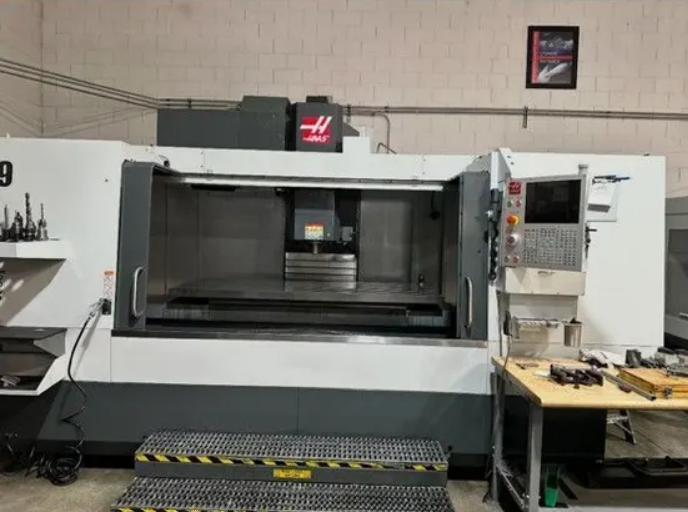

Haas VF-9/40 3 Axis

Travel X: 84 in
Travel Y: 40 in
Travel Z: 30 in
Rapid traverse X: 600 ipm
Rapid traverse Y: 600 ipm
Rapid traverse Z: 600 ipm
Control: Haas Next Generation CNC
WIPS (Wireless Intuitive Probing System)
Programmable coolant
Custom macros
Coordinate rotation and scaling
Spindle orientation
High-speed machining
VPS editing
Media display
1 GB memory
Wireless networking
Rigid tapping
Early power failure detection module
Haas Connect
Ethernet
Remote jog handwheel
WiFi
Chip auger
Table size: 84 x 36 in
Maximum table load: 4000 lb
Spindle speed: 8100 rpm
Spindle motor power: 30 hp
Maximum spindle torque: 90 ft-lbf @ 2000 rpm
Drive system: Inline direct-drive
Spindle taper: CT40
Air/oil bearing lubrication
Liquid-cooled spindle
Maximum cutting feedrate: 500 ipm
Tool changer type: Side-mount
Tool changer capacity: 30+1 tools
Maximum tool diameter: 2.5 in
Maximum tool diameter (adjacent pocket empty): 5.0 in
Maximum tool diameter (extra-large tool): 6.0 in
Maximum tool length: 16 in
Maximum tool weight: 12 lb
Tool-to-tool time: 2.8 sec
Chip-to-chip time: 3.6 sec
Input voltage: 220/440 VAC, 3-phase
Number of axes: 3
