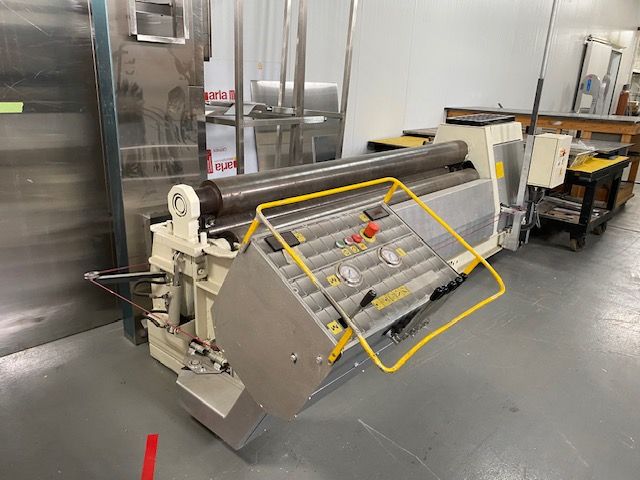

Haco 3HBR 25/06

HACO 3HBR 25/06

Working Length 102″
Rolling Capacity 1/4″ Mild Steel
Pre-Bending Capacity 3/16″
Top Roll Diameter 7.5″
Side Roll Diameter 6.7″
Working Height 30″
Motor Power 3 kW
Voltage 575V / 3 Ph / 60 Hz
Overall Dimensions (L x W x H) 153″ x 37″ x 46″
Approx. Weight 5,070 lbs

Main Specifications:
Roll Length: 102" (2600 mm)
Maximum Rolling Thickness (Mild Steel): 1/4" (6 mm)
Roll Hardness: 55–58 HRC (Hardened Rolls)
Control Panel: Centralized, ergonomic design
Digital Readouts: Available for both side rolls
Conical Bending: Hydraulic conical bending device
Drop-End: Hydraulic drop-end for easy material removal
Overload Protection: Hydraulic system with built-in protection
Safety System: Full safety features included

Applications:
Structural Steel Fabrication
Tank and Duct Manufacturing
Custom Metal Forming
General Fabrication Shops
