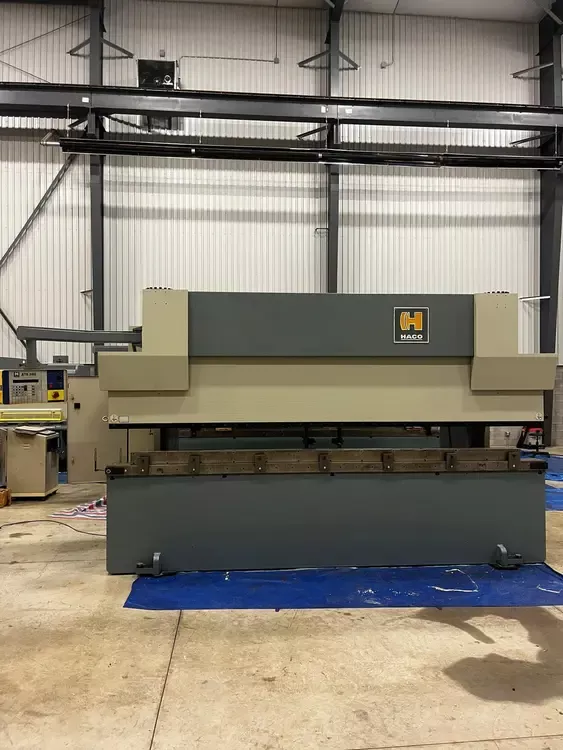

Haco ERMSE 40200 220 T

Max tonnage 220 T
Bending length 161"
Between side frames 124"
Depth of throat 11.8"
Ram stroke 7.8"
Daylight opening 15.35"
Closed height 7.48"
Working height 38"
Width of table 7.8"
Motor power 25 HP
Oil tank capacity 73 gal
Line voltage 220V/60Hz/3ph
Fast approach speed 236"/min
Bending speed 19"/min
Fast return speed 189"/min
Total length 173"
Total height 118"
Total width 75"
Approx weight 32,600 lb
Number of axes 3
Type Hydraulic

Features / Equipment
CNC control ATS 560
X-axis AC drive programmable in 0.1 mm
Back gauge on ball screws
Two finger blocks manually adjustable
Programmable top stop point
Speed changeover point
User-friendly dialogue software
Memory capacity 400 steps over 200 programs
Back gauge retraction for Z-bending
Ram clamping for North American style top tooling
Riser block for single V dies
Ability to tilt beam 2.5 degrees
Two linear encoders mounted on side frame brackets
