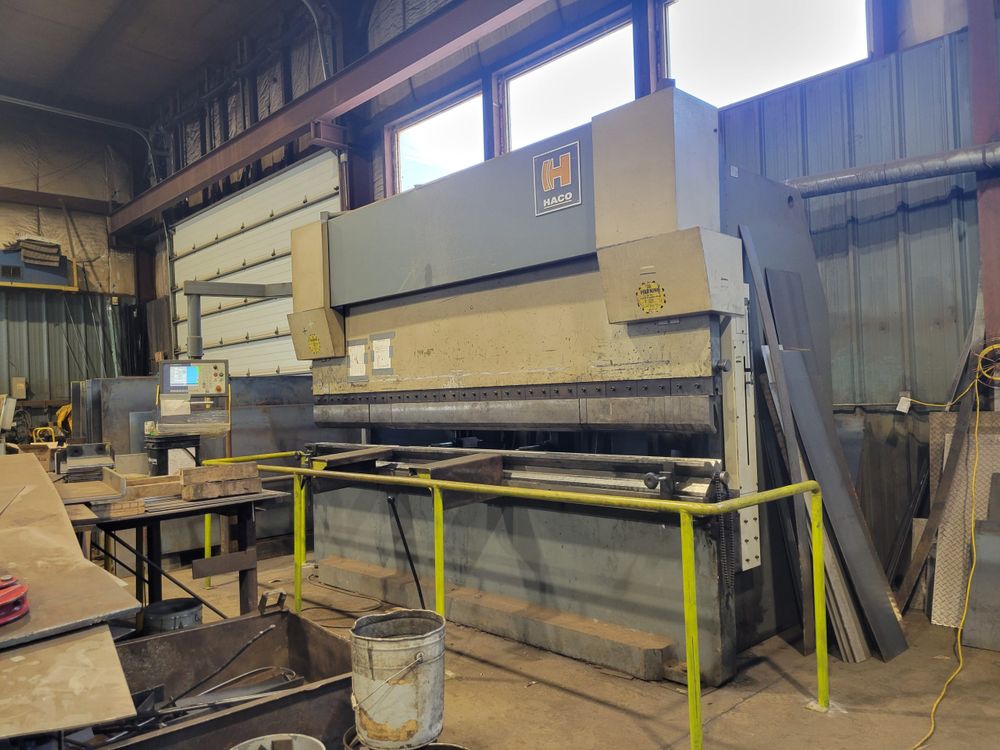

Haco EUROMASTER 36300 300 Metric Ton (330 US Short Tons)

HACO EUROMASTER 36300

CNC Controlled Hydraulic Press Brake
with Haco – Robosoft Numerical & 2D Graphic Control (Retrofit Installed in 2022)

Capacity:
300 Metric Ton (330 US Short Tons)

Bending Length:
Overall: 144” (3600 mm)
Between Side Frames: 124” (3150 mm)

Features:
Y1–Y2 synchro beam control
CNC controlled X-axis back gauge
Goose neck top tool
Multi V bottom tool (1 V is damaged)
Haco – Robosoft numerical & 2D graphic control (retrofit 2022)
Good working condition

Technical Specifications:
Depth of throat (gap): 12.99” (330 mm)
Ram stroke: 9.84” (250 mm)
Open height (daylight): 19.69” (500 mm)
Closed height: 9.84” (250 mm)
Working height: 37.01” (940 mm)
Table width: 9.85” (250 mm)
Motor power: 22.5 kW (33.75 HP)
Maximum working pressure: 310 Bar
Voltage: 575V / 60Hz / 3Ph
Fast approach speed: 189”/min (80 mm/sec)
Bending speed: 16.5”/min (7 mm/sec)
Fast return speed: 189”/min (80 mm/sec)

Machine Dimensions & Weight:

Total length (approx.): 153.94” (3910 mm)
Total height (approx.): 120” (3100 mm)
Total width (approx.): 77.95” (1980 mm)
Approximate weight: 44,092 lb (20 Ton)
