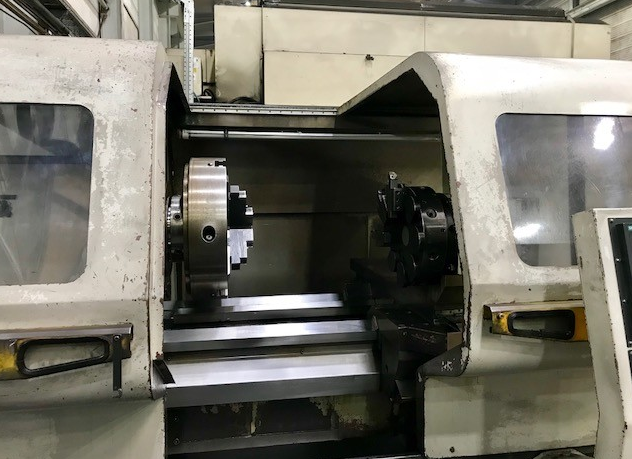

FAT, Haco SINUMERIK 840D ManualTurn 1,800 rpm TUR 800 MN 2 Axis

Control: SIEMENS SINUMERIK 840D ManualTurn
Spindle through bore: 140 mm
Turning diameter800 mm
Circulation diameter over bed max.: 800 mm
Maximum circulation diameter via support: 480 mm
Turning length 4000 mm
Center width (swivel length) max.: 4,000 mm
Spindle cone150
Spindle cone (metric cone): 150
Spindle speed range: 5 – 1,800 rpm
Spindle speed range I: 5 -360 rpm
at N = const.: 90 – 360 rpm
Spindle speed range II: 360 – 1,800 rpm
at N = const.: 360 – 1,800 rpm
Area of the longitudinal feeds (Z/X): 0 – 6,000 mm/min
1 piece three-jaw chuck ø 400 mm
1 piece three-jaw chuck ø 630 mm
1 piece faceplate ø 600 mm
Center height250 mm
Center height: 250 mm
Pitch of the guide spindle (Z/X): 10 mm
Feed force of the longitudinal feed (Z) max.: 15.000 N
Feed force of the transverse feed (X) max.: 10,000 N
Cross slide adjustment range (X): 480 mm
Bed guide width: 544 mm
Width of the cross support plate: 330 mm
Maximum permissible workpiece weight: 3 t
Ridingstock pinols – Morse cone: 6 MT
Diameter of the tailstock pinols: 125 mm
Lift of the tailstock pinole manual: 280 mm
Nominal torque Mn = 15.5 Nm
Nominal speed Nn = 3,000 rpm
Total power requirement: 39.5 kW
Machine weight approx.: 9.3 t
Length: 8,000 mm incl. Chip conveyor (can be disassembled, then approx. 1,400 mm shorter)
Width: 2,500 mm
Height: approx. 2,200 mm
1 bezel, Ø: 30 – 340 mm
