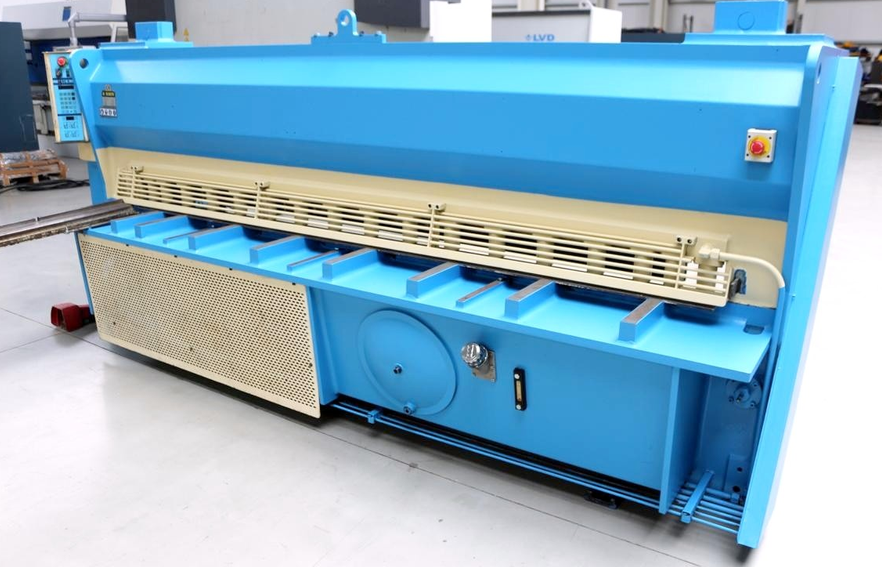

Haco HSLX 3006

Maximum sheet thickness: 6.5 mm
Maximum cutting length: 3050 mm
Maximum stainless steel thickness: 4.0 mm
Backgauge travel: 750 mm
Working height: 770 mm
Stroke rate: 11–22 strokes/min
Cutting angle: 0.5–3.0°
18 hold-down clamps
Control: SC 5 NC
Electro-hydraulic
Electro-hydraulic cutting angle adjustment
Electro-hydraulic cutting gap adjustment
Programmable backgauge retraction
Motorized backgauge with ball screws
Hydraulic sheet hold-down devices
Front finger guard
Long side stop
Movable foot switch
Voltage: 380 V
Power: 11.0 kW
Weight: 5000 kg
Machine dimensions: 3950 × 1750 × 1720 mm
Operating instructions (German PDF)
