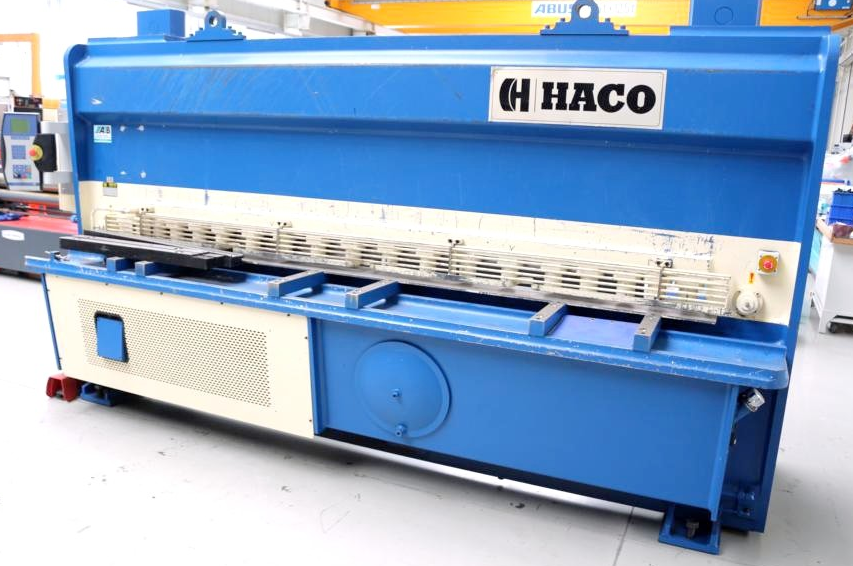

Haco HSLX 3013

Sheet Width 3050 mm
Plate Thickness 13.0 mm
Thickness at Stainless Steel 8.0 mm
Max. Work Height 930 mm
Number of Strokes 9 – 17 / min
Cutting Angle 0.5 – 3.0 °
Down Holders 18
Control SC 90
Engine Output 22.0 kW
Weight 9500 kg
Machine Dimensions 4270 x 2200 x 2250 mm
Electro-Hydraulic Slide-Guided Guillotine Shear
NC Electro-Hydraulic Control Model SC 90
Pre-Selected Backgauge Positioning
Digital Display of Actual Position
Electro-Hydraulic Cutting Angle Adjustment
Electro-Hydraulic Cutting Gap Adjustment
LCD Display
Emergency Stop Switch
NC Electro-Motorized Backgauge on Recirculating Ball Screws
Hydraulically Operated Hold-Down Clamps
Front Finger Guard
Ball Transfer Units in Support Table
Support Table with Recessed Grips
1x Side Stop with mm Scale
2x Front Support Arms
1x Freely Movable Foot Switch
Rear Safety Guard
Operating Instructions in PDF
