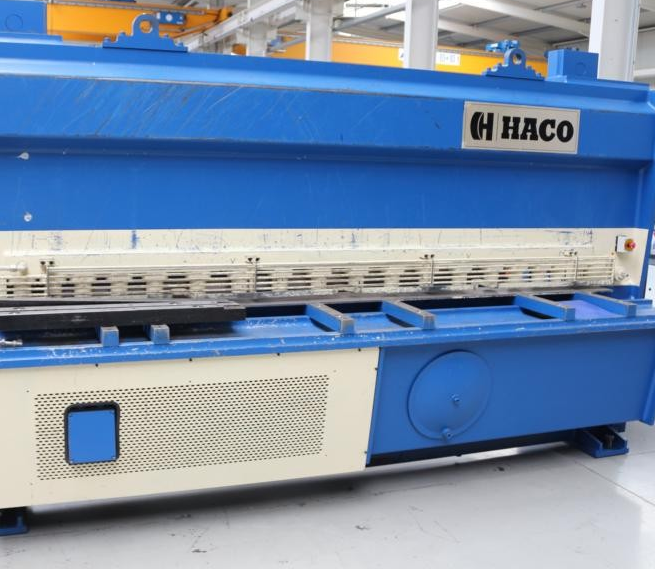

Haco HSLX 3013

Sheet width 3050 mm
Plate thickness 13.0 mm
Thickness at stainless steel 8.0 mm
Work height max 930 mm
Number of strokes 9–17 strokes/min
Cutting angle 0.5–3.0°
Down holder 18 pcs
Control SC 90
Engine output 22.0 kW
Machine weight 9500 kg
Machine dimensions 4270 x 2200 x 2250 mm
Electro-hydraulic slide-guided guillotine shear
HACO NC control SC 90
Pre-selected backgauge positioning
Digital display of actual position
Electro-hydraulic cutting angle adjustment
Electro-hydraulic cutting gap adjustment
LCD display
Emergency stop switch
NC electro-motorized backgauge on recirculating ball screws
Hydraulic hold-down clamps
Front finger guard
Ball transfer units in support table
Support table with recessed grips
Side stop with mm scale
2 front support arms
Freely movable foot switch
Rear safety guard
Operating instructions in German (PDF)
