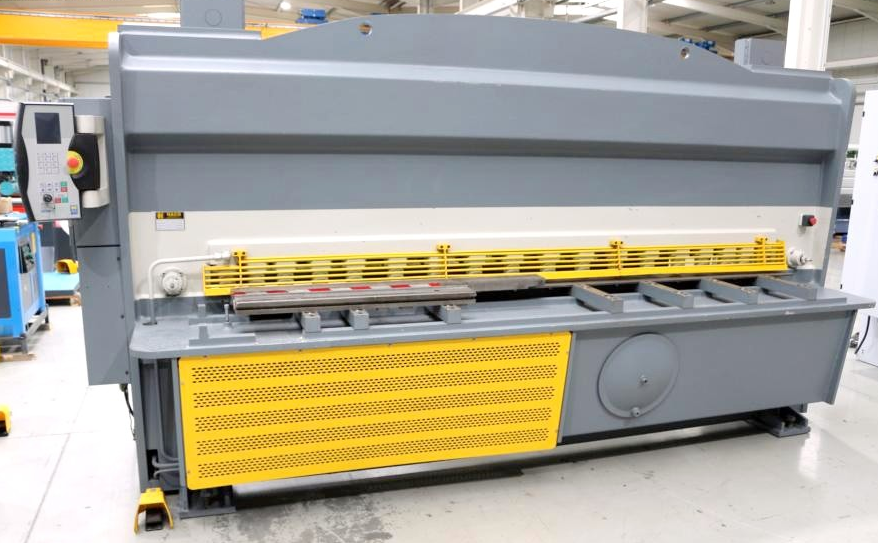

Haco HSLX 3013

Sheet width: 3050 mm
Plate thickness: 13.0 mm
Thickness at stainless steel: 8.0 mm
Work height max.: 930 mm
Number of strokes: 9–17 strokes/min
Cutting angle: 0.5–3.0°
Down holder: 18 pieces
Control: SC 100 T
Engine output: 22.0 kW
Weight: 9500 kg
Range L-W-H: 4270 x 2200 x 2250 mm

EQUIPMENT / FEATURES
Electro-hydraulic sliding table shear
HACO CNC control SC 100 T
Preset positioning of the backgauge
Digital display of actual position
Electro-hydraulic cutting angle adjustment
Electro-hydraulic cutting gap adjustment
LCD display
Emergency stop switch
NC electro-motorized backgauge on ball screws
Hydraulically operated hold-down device
Front finger guard
Ball rollers in the support table
Support table with recessed handles
Side stop with mm scale
Front support arms
Freely movable foot switch
Rear safety device
Operating instructions German PDF
