Haco HSLX 4006

Sheet width: 4050 mm
Plate thickness: 6.5 mm
Thickness for stainless steel: 4.0 mm
Backgauge adjustment: 1000 mm
Number of strokes: 6–11 strokes/min
Working height: 880 mm
Control: SC 70
Cutting angle: 0.5–3.0°
Hold-down clamps: 23 pcs
Motor power: 11 kW
Machine weight: 7500 kg
Machine dimensions: 4950x1950x1720 mm

Equipment

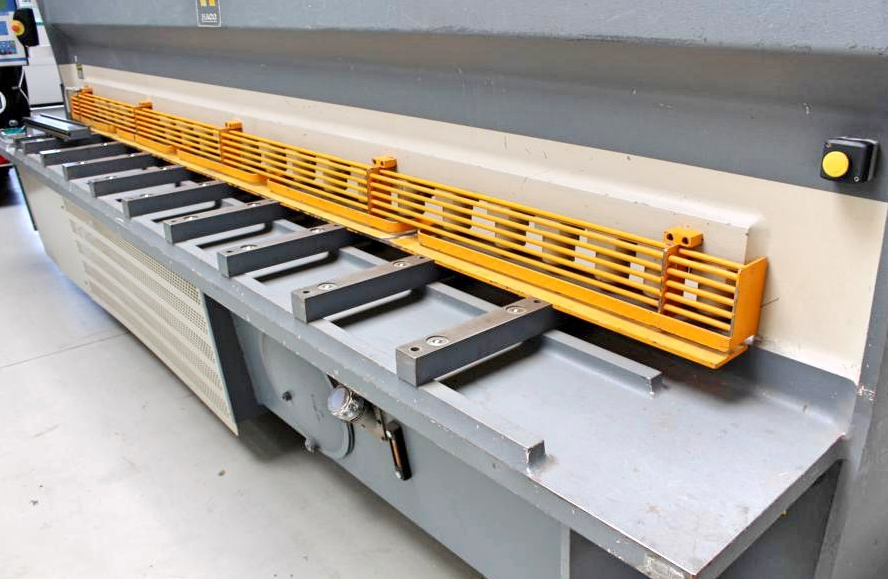

Electro-hydraulic, blade-guided guillotine shear
HACO CNC control SC 70, swiveling front left
Preselection positioning of backgauge
Digital display of actual position value
Electro-hydraulic cutting angle adjustment
Electro-hydraulic cutting gap adjustment
Programmable backgauge retraction
Programmable cutting length limit
Emergency switch
Electro-motorized backgauge with ball screws
Hydraulic hold-down devices
Front finger protection
Ball rollers in support table
1 side stop with mm scale
Freely movable foot switch
Rear guard
Operating instructions with CE declaration
Pneumatic sheet metal holding device for thin sheets
For sheet thicknesses up to 4.0 mm
Optimal positioning for thin sheet blanks
