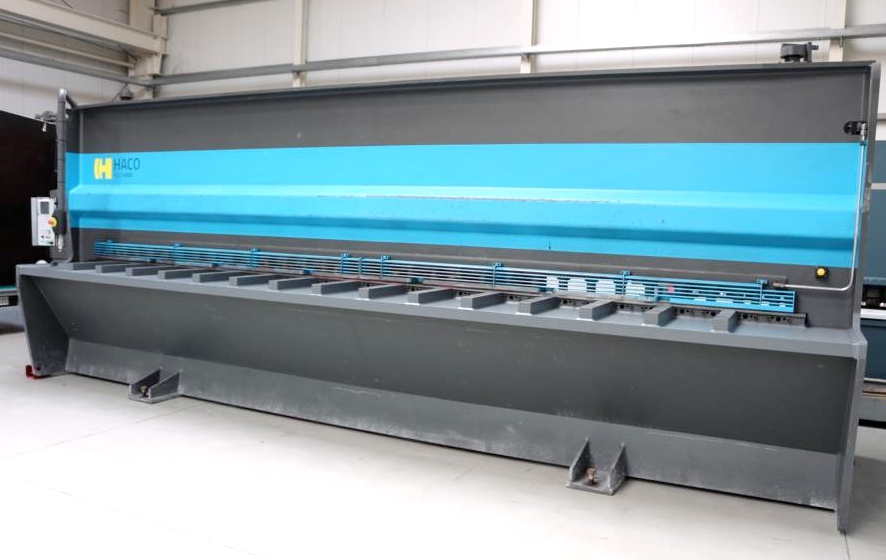

Haco HSLX 6006

Sheet width: 6020 mm
Plate thickness: 6.0 mm
Thickness at stainless steel: 4.0 mm
Back stop adjustable: max. 1000 mm
Work height max.: 1030 mm
Strokes: 5–10 strokes/min
Cutting angle: 0.5–3.0°
Down holder: 33 pcs
Control: SC 100 T
Engine output: 11.0 kW
Machine weight: 27000 kg
Machine dimensions: 7650 x 2400 x 2885 mm

Features
Machine type: Plate Shear - Hydraulic
Control type: CNC
Robust electro-hydraulic guillotine shear, guide rail design
HACO CNC control SC 100 T pivoting at the front left
Control unit with LCD display
Pre-selected positioning of the backgauge
Digital display of actual position
Electro-hydraulic cutting angle adjustment
Electro-hydraulic cutting gap adjustment
Programmable retraction from the backgauge
Programmable cutting length limitation
Automatic and manual programming mode
Emergency stop switch
CNC electro-motor-driven backgauge on recirculating ball screws
Continuous adjustment up to max. 1000 mm
CNC electro-hydraulic cutting gap adjustment
CNC electro-hydraulic cutting angle adjustment
Hydraulically operated sheet metal clamp
Front finger guard
Front support table with recessed grips
1x side stop with mm scale
1x freely movable foot switch
Rear safety device (light barrier)
Operating instructions (PDF)
Optional sheet metal holding device for thin sheet metal blanks
Optimal positioning of thin sheet metal
