Haco PPES 500 ton x 5100 mm CNC 500 ton
Ref :
2722059-3-CP
Condition :
Used
Manufacturer :
Haco
Model :
PPES 500 ton x 5100 mm CNC
Pressure :
500 ton
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

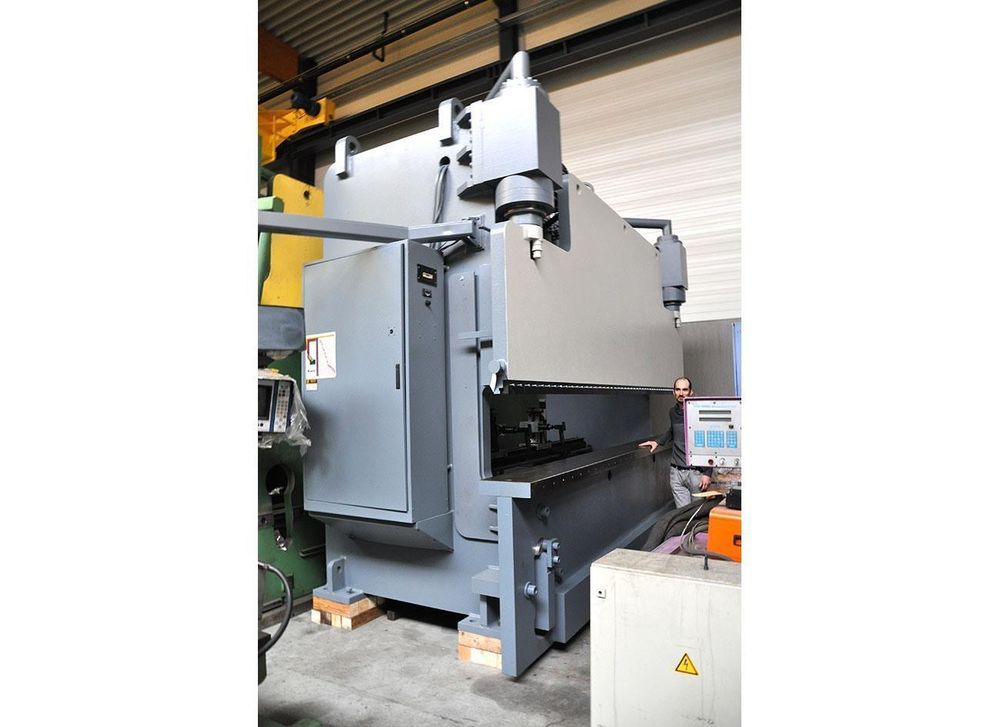

HACO PPES 500 ton x 5100 mm CNC
Capacity: 500 ton
Bending length: 5100 mm
Backgauge: CNC
Control: 2D touchscreen
Passage between uprights: 4100 mm
Max stroke: 300 mm
Max distance table to ram: 550 mm
Throat depth: 330 mm
Table width: 250 mm
Locking speed: 80 mm/sec
Working speed: 7 mm/sec
Return speed: 80 mm/sec
Electric motor power: 37.5 kW
Machine length: 5860 mm
Machine depth: 2225 mm
Machine height: 4100 mm
Machine weight: 45 tons
Axes: Y1
Axes: Y2
Axes: X
Heavy-duty backgauge
Conical bending up to 2.5°
New touchscreen control
No foundation required
Ram supports tools up to 250 tons per meter
