Haco PPM 220 ton x 4100 mm CNC
Ref :
2726371-3-CP
Condition :
Used
Manufacturer :
Haco
Model :
PPM
Pressure :
220 ton x 4100 mm CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

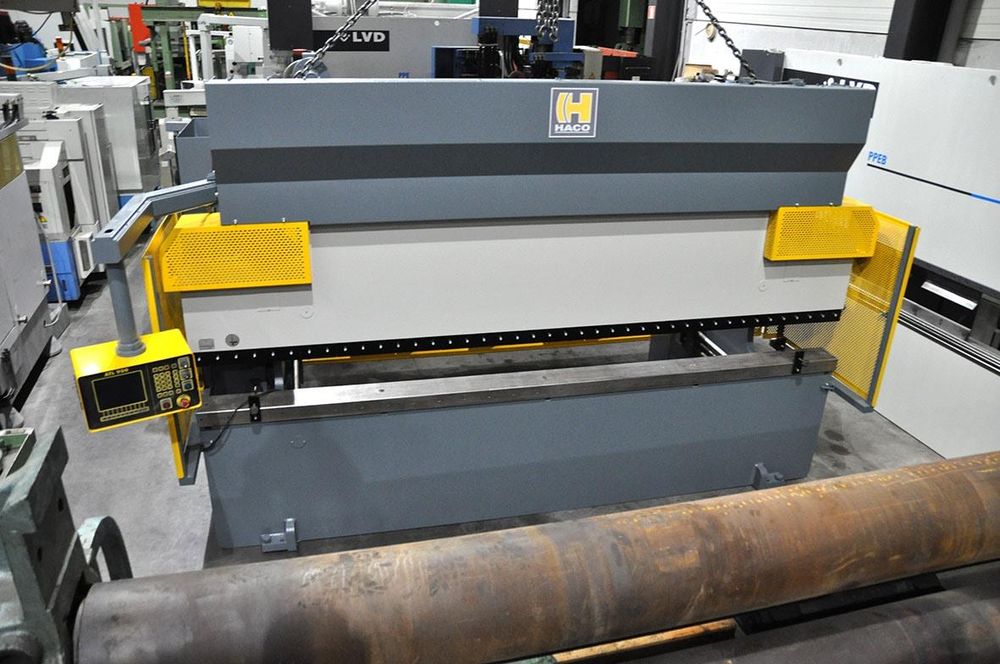

Haco PPM 220 ton x 4100 mm CNC
Capacity: 220 ton x 4100 mm
Backgauge: CNC
Control: ATL 550
Passage between uprights: 3150 mm
Max stroke: 200 mm
Max distance between table and ram: 450 mm
Depth of throat: 300 mm
Table width: 200 mm
Locking speed: 80 mm/sec
Working speed: 9 mm/sec
Returning speed: 80 mm/sec
Electric motor power: 25 HP
Length: 5400 mm
Depth: 2400 mm
Height: 2800 mm
Weight: 16 ton
Axes: Y1
Axes: Y2
Axes: X
Manual crowning
Lasersafe safety system
Optional 2D graphic touchscreen control retrofitting available
