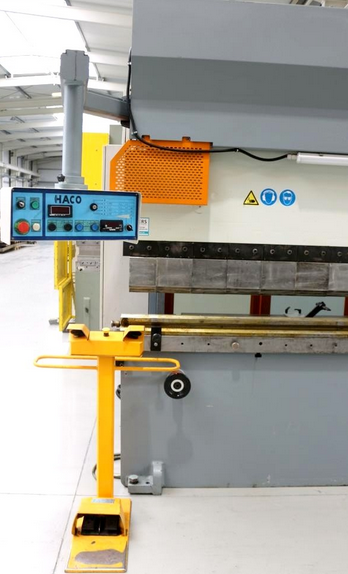

Haco PPM 30.200 200 t

Press force: 200 t
Stroke: 200 mm
Throat: 300 mm
Daylight: 440 mm
Distance between columns: 2550 mm
Bending length: 3100 mm
Working height: 965 mm

Working feed: 9.0 mm/sec
Return speed: 80.0 mm/sec

Control: conventional
Electro-hydraulic press brake
Pivoting operation
Electric depth adjustment (Y1/Y2 axis)
Torsion shaft for parallelism
Motorized backgauge (X axis)
Ball screw backgauge
Manual fine adjustment handwheel
Manual table crowning
Manual and automatic cycle modes
Two-hand/foot control
Operating instructions

Upper tool set
V-die block (reversible)
1V die (continuous)
Additional bending tools

Pressure: 265 bar
Motor power: 15 kW
Machine dimensions: 3360 × 1750 × 2800 mm
Machine weight: 10,500 kg
