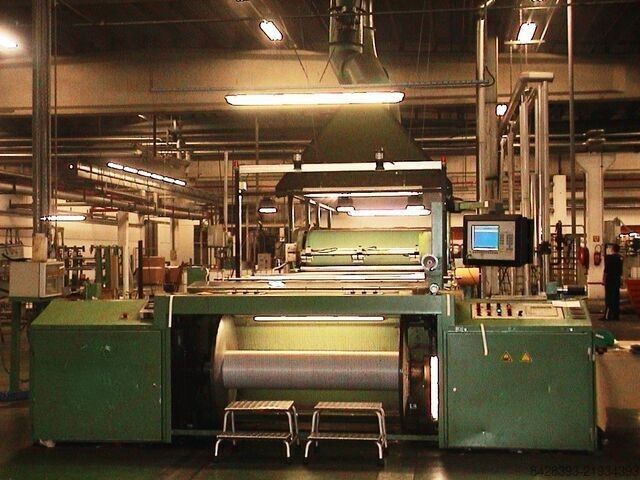

Hacoba, Sucker muller NZB-Z SDW

DRAW-SIZE-WARPING LINE FOR FILAMENT YARNS
TO PROCESS POY (FROM BOBBINS) INTO FULLY DRAWN SIZED WARP BEAMS :
MAKE : SUCKER-MUELLER - HACOBA
TYPE : NZB-Z
WW : 180 cm
YOC : 2002 ( USED ONLY 4 YEARS!, then stored )
SPEED : 500 M/ MIN
EQUIPPED WITH :
- WAXING ROLL
- 2 HOT AIR DRYING CHAMBERS (1995) 150 ̊C
- 9 STEAM DRYING CYLINDERS 180cm ( 1995) 130 ̊C
- YARN TENSION CONTROL SYSTEM BY ‘TENSOSCAN’
- YARN DRYING CONTROL SYSTEM BY ‘PLEVA’
- YARN BREAKAGE INSPECTOR BY ‘CAMSCAN’

CREEL WITH BOBBIN CARRIAGE
MAKE : ROSTONI
TYPE : RCS/GB/1344
YOC : 1995
NO. OF BOBBINS : 1344
EQUIPPED WITH :
- MOVABLE TENSIONER FRAME
- EYE GUIDE BOARD
- TENSION VARIATION

SIZING KITCHEN
MAKE : MARIOTTI & PECINI
YOC : 2002
CAPACITY : 700 LITERS INOX TUB
+ INOX STOCK TUB 700 LITERS

WITH ASSEMBLY BEAMER 300CM
MAKE : SUCKER-MUELLER
TYPE : WN
YOC : 1985
BEAMING SPEED : 150 M/MIN
WW : 300 CM
BEAM DIA : MAX 1000 MM
BEAM WIDTH : 3000 MM ( ROLL WIDTH 3200MM)
- LEAVELING DEVICE SYSTEM ( FOR 8 SECTION BEAMS)
- WITH TENSION CONTROL SYSTEM FOR WARP BEAMS
- WITH 2 x DOUBLE DECK BEAM STAND FOR 10 BEAMS & 6 BEAMS BY
SUCKER MULLER ( 1987) TYPE AB50
