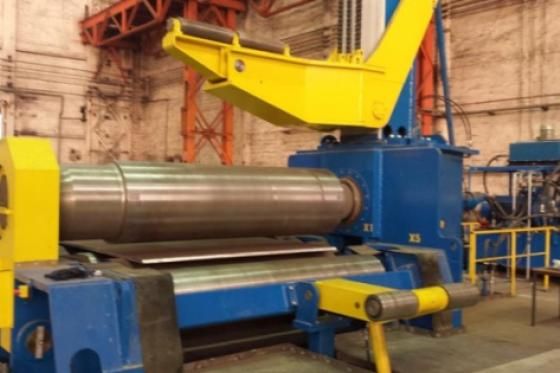

Haeusler VRM-HY
Ref :
2734249-3-GO
Condition :
Used
Manufacturer :
Haeusler
Model :
VRM-HY
Year(s) :
2009
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Force lower roll upper roll: 1178 Ton
Cone bending attachment
Hardened and ground rolls
Width between upper and lower roll: 200 mm
Power: 180 kW
Rolling width: 3050 mm
Rolling thickness (3x top roll Ø): 90 mm
Rolling thickness (5x top roll Ø): 100 mm
Rolling thickness prebending: 80 mm
Top roll diameter: 840 mm
Bottom roll diameter: 760 mm
Side roll diameter: 610 mm
Number of rolls: 4
Rolling speed: 1.5 / 3 / 4.5 / 6 m/min
Adjustment lower roll: 0–300 mm/min
Number of driven rolls: 2
Machine length: 7500 mm
Machine width: 3250 mm
Machine height: 4250 mm
Machine weight: 130000 kg
