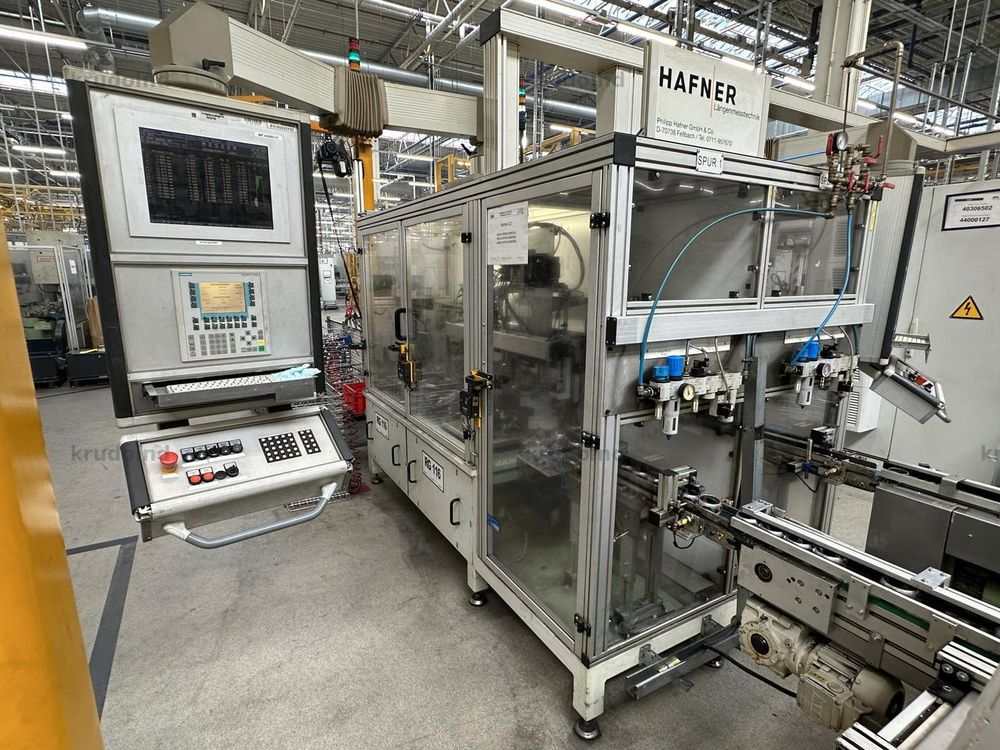

Hafner Measuring Device

Control SIEMENS S7-300
System KOMEG Quality Data Systems: QDS-DSM-Rack
Display KOMEG TFT 15”
Profibus Card Hilscher RS485II
Inductive Length Measuring Probe TESA GT62
Temperature Sensor Omega NTC Type K
Marking Device Richter Easy Marker Type EM
Electrical Connection Cable 5 x 2.5 mm²
Pre-fuse 3 x 25
Power Supply 3 x 400 V / 50 Hz
Pneumatic Supply Min. 6 bar, Max. 10 bar
Pressure Setting on Central Unit 6 bar
Pressure Switch Setting 4.5 bar
Air Consumption per Work Stroke approx. 16 dm³
Air Consumption with Cycle Time 8 sec approx. 120 dm³/min
Measuring Task Measures external diameters, window heights, symmetry
Two Measuring Stations
