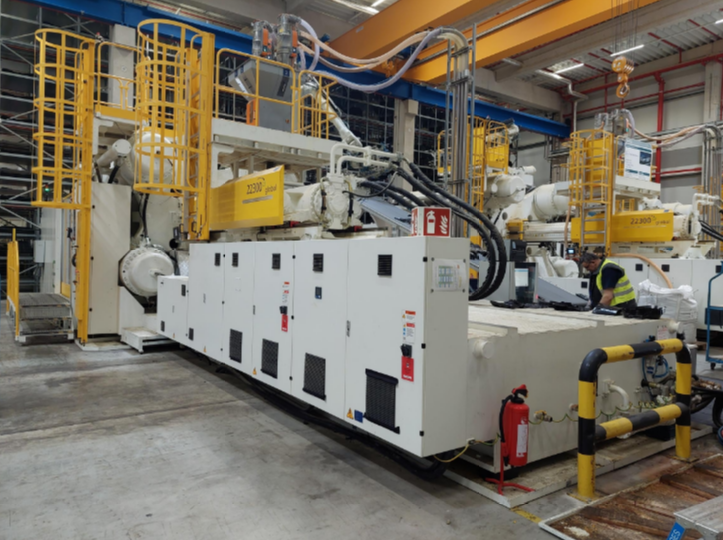

Haitian JU28000 III - 22300 2800 T

Working hours 2 h
Controlversion KEBA 5085

Clamping unit:
Clamping force 28000 kN
Size of mould platens (h x v) 3005 x 2575 mm
Distance between tie bars (h x v) 2185 x 1755 mm
Mould opening stroke 3300 / 2100 mm
Mould height min/max 800/2000 mm
Max. daylight 4100 mm

Injection unit:
Screw diameter 150 mm
Injection pressure 1750 bar
Stroke volume 12017 ccm
Shot weight (PS) 10935 gr.
Screw speed 94 1/min
Plasticising rate max. 1866 g/s

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 75+55+75+18,5+7,5 kW
Installed heating capacity 133 kW
Oil Reservoir capacity 2520 ltr.

Dimensions and weights:
Dimensions of the machine ca. 15,75 x 7,39 x 4,50 m
Total machine weight 156000 kg

Accessories:
- Anti vibration pads
- ABB Robot, 3900 mm range, 90 KG payload
- Stäubli magnetic platen
- Conveyor 6000 x 1000 mm
- Motan Mixing station

Additional Options:
- 20 x Air valves
- 4 x hydr. core pulls
- 4 x pneumatic core pulls
- Robot interface according to Euromap 67
- 28 x hydraulic sequential valves
- 96 x hotrunner controller
