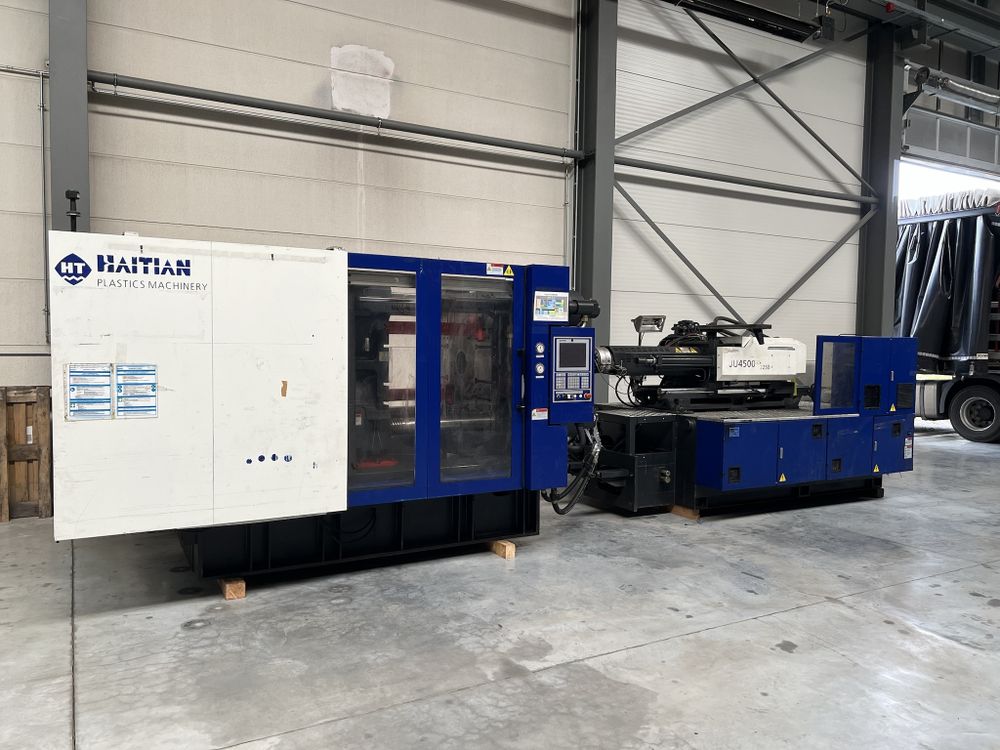

Haitian Jupiter 2 Plus - 4500 - 2250 450 T

Working hours 40000 h
Controlversion KEBA 2880
Screentext German - English

Clamping unit:
Clamping force 4500 kN
Distance between tie bars (h x v) 810 x 800 mm
Mould opening stroke 1050 mm
Mould height min 350 / 850 mm
Max. daylight 1400 mm
Hydraulic ejector - stroke 250 mm
Ejector force 110 kN

Injection unit:
Screw diameter 70 mm
Ls/D ratio 20
Injection pressure 1840 bar
Stroke volume 1239 ccm
Shot weight (PS) 1127 gr.
Screw speed 220 1/min
Plasticising rate max. 67,3 g/s

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 45 kW
Installed heating capacity 28,2 kW
Reservoir capacity 720 ltr.

Dimensions and weights:
Dimensions of the machine ca. 7,10 x 2,20 x 2,30 m
Total machine weight 20000 kg

Accessories:
- Anti vibration pads

Additional Options:
- 2 x Air valve
- 2 x Core pulls
- Robot interface according to Euromap 12
