Haitian MA II S 1200/400 135 T

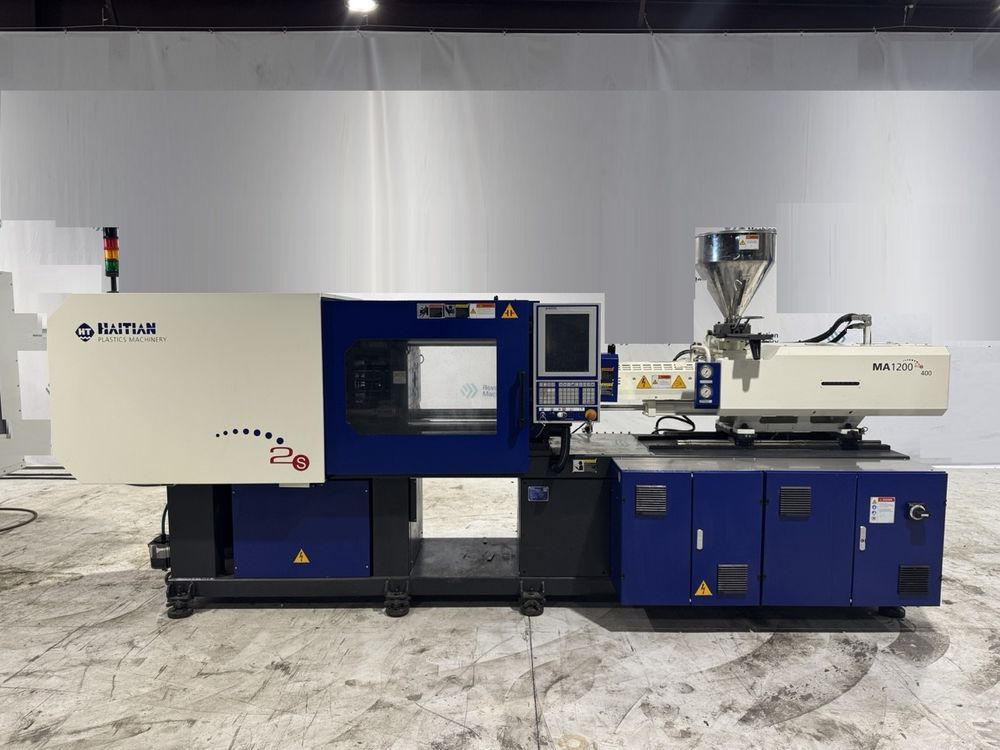

Clean late-model 2020 Haitian MA II S 1200/400 injection molding machine
with servo-hydraulic efficiency, 135-ton clamping force,
and production-ready performance for general plastic molding applications.

Machine Type: Horizontal servo-hydraulic injection molding machine.
Clamping Force: 1200 kN / about 135 tons.
Injection Unit: 400 series; an earlier Mars II spec sheet shows the
closely related MA1200 II /410 platform.
Screw Diameter: 36 / 40 / 45 mm depending on installed screw package.
Shot Size (theoretical): 173 / 214 / 270 cm³ depending on screw diameter.
Injection Weight (PS): 157 / 195 / 246 g depending on screw diameter.
Injection Rate: 112 / 139 / 176 g/s depending on screw diameter.
Injection Pressure: 236 / 192 / 151 MPa depending on screw diameter.
Toggle Stroke: 360 mm.
Space Between Tie Bars: 410 x 410 mm.
Max. Mold Height: 450 mm.
Min. Mold Height: 150 mm.
Ejector Stroke: 120 mm.
Max Pump Pressure: 33 MPa.
Pump Motor Power: 15 kW.
Heater Power: 9.95 kW.
Machine Dimensions: 4.88 x 1.20 x 2.03 m.
Machine Weight: 9,600-10,100 lbs.
