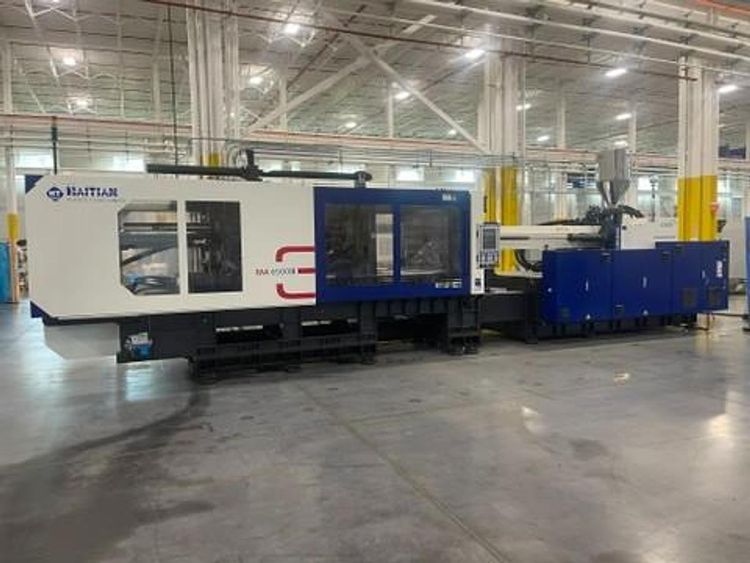

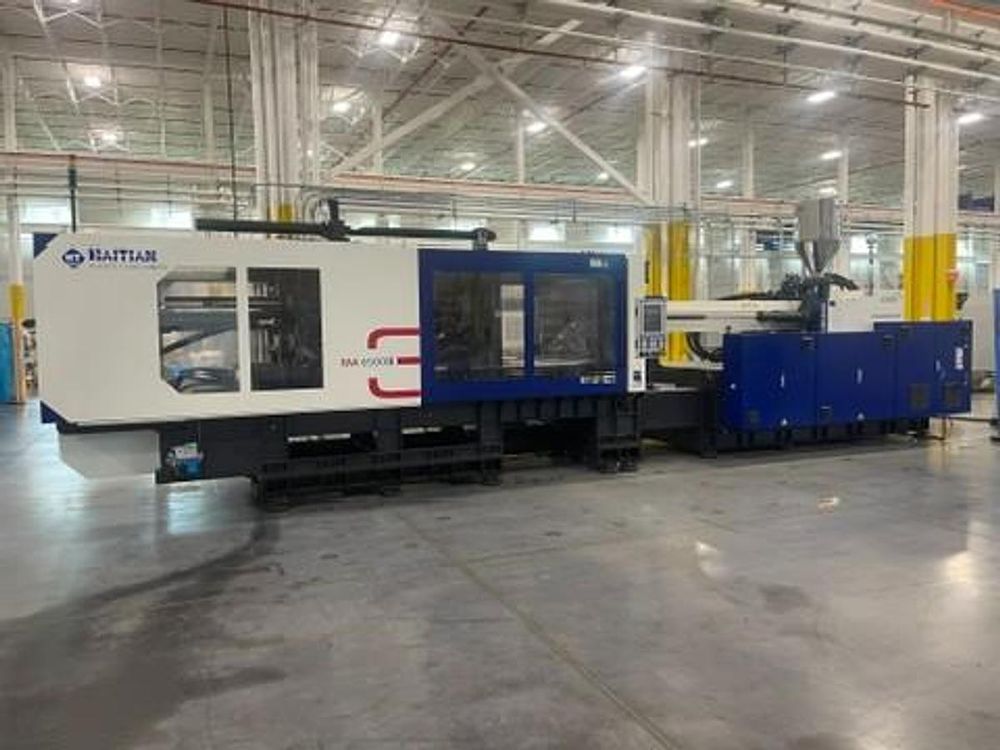

Haitian MAIII 6500/6300h (C) 731 T

US Tonnage 731
Shot Size (oz. of PS) 143
Screw Diameter 110mm
Platen Size (in.) 50" x 50"
Tiebar Spacing (HxV) in. 34.64" x 34.64"
Max Mold Height (in.) 38.58"
Min Mold Height (in.) 14.96"
Opening Stroke (in.) 36.41"
Open Daylight (in.) 75"
Ejector Stroke (in.) 9.44"
Control Keba 5000
Voltage 460V/3P/60Hz

Included Options
Euromap 67 robot interface, variable pitch screw w/mixing, 24:1 L/D,
increased motor power 95kw+95kw, special base,
increase heater power/intensity, parallel motion
for cores and ejectors during clamp open (eject on the fly)
Increase max mold height by 100mm
Increased air blast circuits for part removal
Part drop photo eye
Proportional Valve for Injection
Opening at operator-side of machine base (open to floor with increase height)
for part drop by 200mm
Optional KEBA5000 controller-High End controlller with 15" touch screen panel
Installed: 2 circuit pneumatic valve gate, water block for mold cooling.
water manifold main in/out water fitting 1-1/2".
Mold Open Close Proportional Valve/Rexroth
Installed: 4 hyd valve gates with 2.5 liter accumulator to hold pressure
