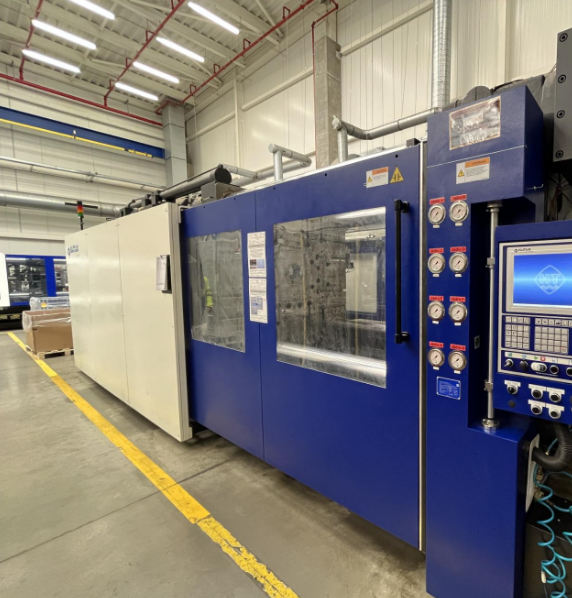

Haitian Mars II MA10000/6800 Universal ServoDrive 1000 T

Main Technical Parameters:
Clamping force: 10,000 kN
Opening stroke: 1220 mm
Minimum mould height: 500 mm
Maximum mould height: 1160 mm
Daylight between platens: 2380 mm
Distance between tie bars: 1160 x 1160 mm
Clamping platen size: 1650 x 1700 mm
Screw diameter: 90 mm
L/D ratio: 24.4 mm/mm
Shot volume: 2721 ccm
Shot weight (PE): 1986 g
Injection rate: 544 g/s
Max injection pressure: 2280 bar
Machine dimensions: 12.5 x 2.49 x 2.75 m
Machine weight: 50.000 kg

Equipment and Features:
423 – Proportional valve for injection (Rexroth)
S01 – 8x hydraulic core pullers (4x fixed platen, 4x moving platen)

with ervo motor
432 – 8x core relief
662E – 16x integrated hot runners
623 – Acoustic alarm
237C – Safety locking force sensor
430C – 8x pneumatic cascade control
Barrel and screw designed for processing 30% glass-filled materials
419A – Parallel movement: opening/ejector or opening/core
667 – 6x freely programmable inputs/outputs
Flow meter with 6 tubes + hoses + cable trays + valves +
filters + nozzles + labor, all per Lamky specification
(Stäubli quick couplings)
Total sockets: 4x230V/16A, 2x400V/16A, 4x400V/32A
Centering ring diameter (fixed and moving side): 250 mm
8x pressure gauges for core puller circuits
409A – 8x pneumatic valves (8 mm, 3/2), 4x fixed, 4x moving side
E65 – Interface for temperature controller (4 zones)
236 – Automatic ejector bar retraction (operator side)
