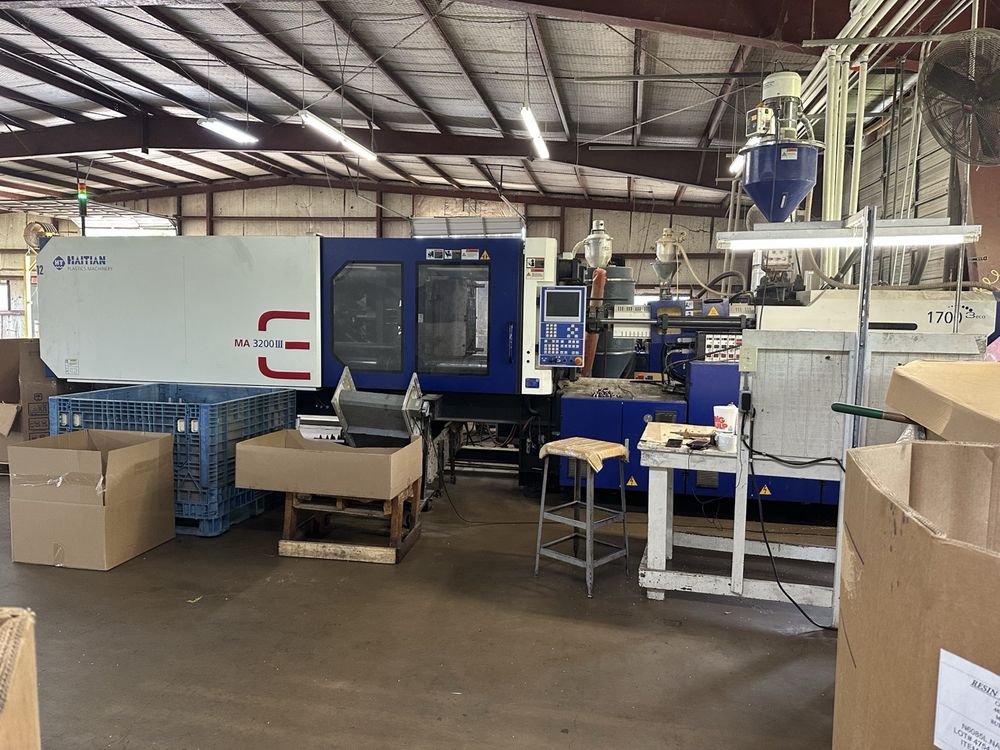

Haitian MARS MA III 3200/1700e 360 T

Clamping Force – 360 tons
Clamp Stroke – 25.2 in
Space Between Tie Bars – 26.77 x 26.77
Max Mold Height – 26.77 in
Min Mold Height- 9.84 in
Ejector Stoke – 6.3 in
Ejector Force – 6.97 tons
Mold Platen Dimensions – 38.98 x 38.98
Total Clamp Open Daylight – 51.97 in
Max Mold Weight on MP – 4630 lbs
Max Mold Weight on Full Set – 7716 lbs
Screw Diameter – 2.76 in
Screw L/D Ration – 18.6
Shot Size – 34.6 oz
Injection Rate – 14.22 oz/sec
Injection Pressure – 22,771 psi
Machine Dimensions – 279x71x94
Weight – 29,762 lbs
