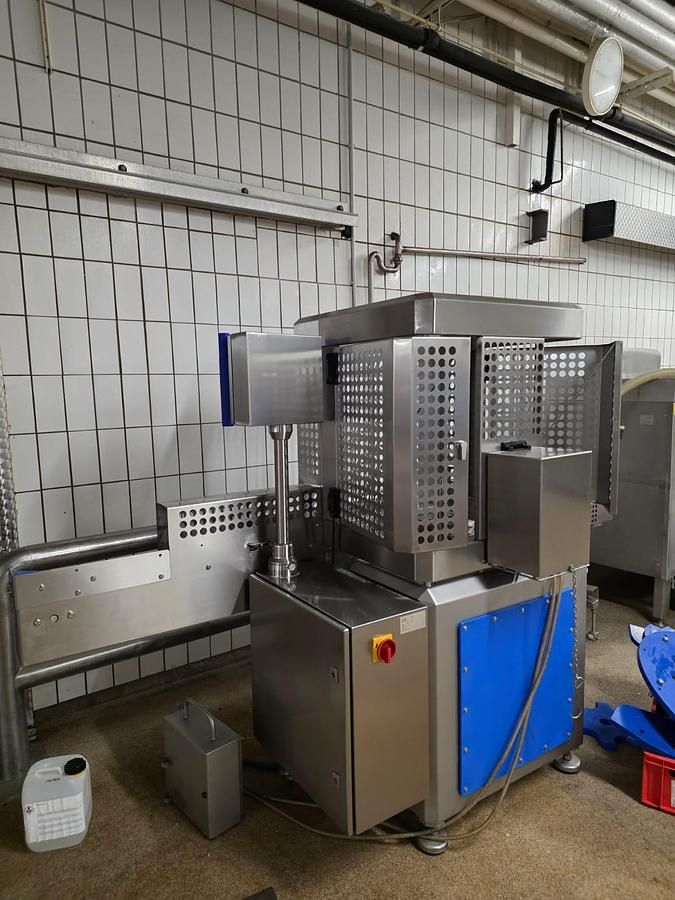

Handtmann Ecoma GPT 6 HS, Dosing System & Accessories

Complete stainless steel dosing system for one GPT 6 HS filling head,
including control unit and program management.
Transfer height 900 mm ± 50 mm, transport speed 18 m/min,
frequency-controlled servo stroke, 40 program memories.

Accessories:
1000 mm rotary table for buffering cans/jars, fixed drive, stainless steel, 400V
85-3 dosing valve with ejector piston, Ø45 mm, pneumatic, suitable for contents up to 90°C
90° + 45° cutting piston, SW70 open-end wrench
Ideal for dosing liquid to pasty materials with inserts.

Hygienic stainless steel design, robust industrial construction.

Detailed specifications:
ECOMA dosing system for 1 filling head GPT 6 HS
Fully enclosed stainless steel machine housing
Stainless steel housing compliant with hygiene guidelines
Housing external dimensions (L x W x H): 800 x 800 x 1850 mm
Container transfer height: 900 mm ± 50 mm
Integrated container infeed and outfeed
Infeed and outfeed lengths: 1100 mm each
Transport speed: 18 m/min at 50 Hz
Speed ​​control (VFD 30–70 Hz) with servo lifting unit for moving the Handtmann dosing head
Raising and lowering of the dosing head is programmable
Memory capacity for 40 programs
Stroke height: 100 mm
Stroke speed: 200 mm/s
For a 6-way dosing star for container handling
Rotary drive as worm gear
Worm gear drive: 0.25 kW Brake motor
Motor frequency controlled 30–70 Hz
Cycle time for 60° rotation ≈ 0.5 sec.
Safety device above container transport
with touchscreen control panel
with electrical control
Interface cable to Handtmann vacuum filling machine
Remote maintenance
* Container hold-down device

* 1 piece
Rotary table for buffering cans or jars
Rotary table 1000
Order no.: 203600-4
Complete Made of stainless steel
Effective diameter 1000 mm
Side guide 85 mm high
Drive: Worm gear motor with slip clutch
Fixed speed = 8 m/min on D = 800 mm
With stainless steel leveling feet
Transfer height 900 mm ± 50 mm
With main switch and 5 m cable
Rotation reversal in the plug
400V 50 Hz

Dosing valve 85-3 – with ejector piston
Attachment for dosing materials with varying viscosities
from very liquid to pasty, high liquid content,
large inclusions and lumps.

Pneumatic actuation
Plastic ejector piston
Outlet Ø 45 mm
Open-end wrench SW70 (2 pieces)
Maximum filling material temperature 90°C
With dosing head Ø 45 mm
With cutting piston 90°
With cutting piston 45°
With external pneumatics
With German documentation
