Hang 470 PLC – FANUC Controlled

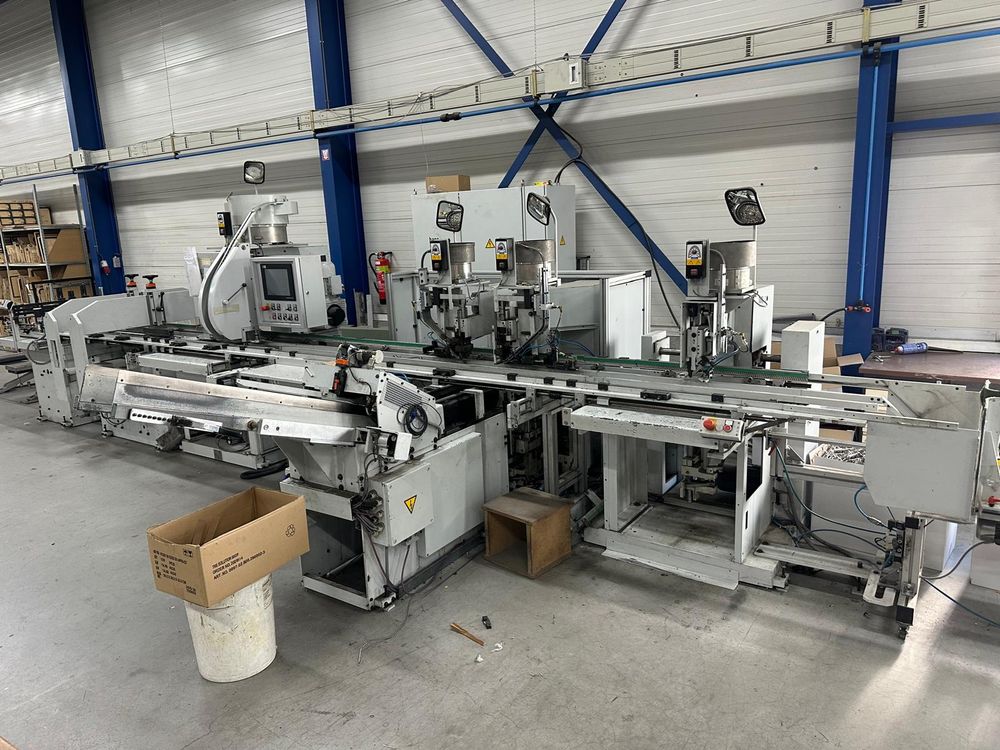

Binder & Lever arch Assembly Line
High-performance automatic production line for ring binders
This fully automatic line is designed for efficient production of ring binders according to customer specifications.
The machine is equipped with multiple processing stations and a Fanuc PLC control with touchscreen interface.

Main Components:
Sheet feeder (Saug-Anleger)
Creasing station
Gripping hole punching unit (Griffloch-Ösmaschine)
Double riveting station
Operator control panel (Fanuc QuickPanel View)
Mechanic feeding unit
Single riveting station
Folding station
Technical Specifications

PLC Control: FANUC with memory for up to 1000 programs and modem for remote support
Setup time: Approx. 2-3 minutes

Material Range:
Cover height: 120 – 400 mm
Cover width: 300 – 820 mm
Material thickness: Min. 1 mm – Max. 3.5 mm
Rivet spacing: 90 – 300 mm

Machine Condition
✔ In excellent working condition
✔ Touch panel with program counter, total counter and production statistics
✔ Fanuc QuickPanel View display
✔ Ready for immediate production
✔ Available for inspection in our warehouse

Production Counter Information (Machine Usage)
Day Counter: 250,895 cycles
Total Counter: 9,495,162 cycles
Product Counter: 1,336,482 units
Operating Time: 12,838 hours
