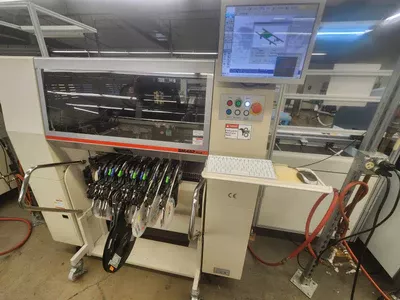

Hanwha, Samsung SM482 Plus

Flexible Pick and Place
6Spindle x 1Gantry
(2) trolley carts (1 each front and rear) are included.

From the OEM: The SM482PLUS can be applied to components from
0603 microchips to □22mm IC components by applying the on-the-fly
recognition technology patented by Hanwha, which enables component
placement at the highest speed among all medium speed
component placers. In addition, it can recognize components of
□42mm with 0.4mm fine pith with a 45mm camera by applying a
high pixel Camera system to the Fix camera.
It also allows high precision (30 micron) placement of IC components and
provides a polygon recognition algorithm for easy registration of
components of complicated shapes.

Applicable Component 0603 ~□22mm (h12mm) (Fly)
~ Max. □55mm, L75 (h15mm) (Fix)
Can process boards up 24" long
Dimensions (mm) : 1,650(L) x 1,680(D) x 1,530(H)
