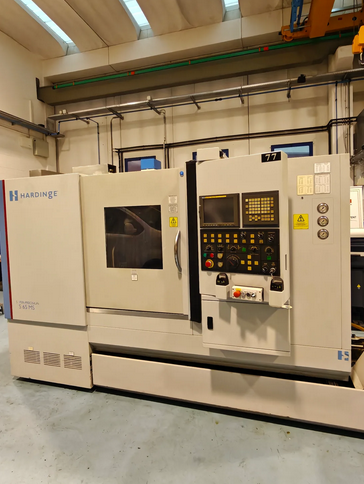

Hardinge FANUC 18i 6,000 t/min RS 65 SP MSY 4 Axis

Ref : 2776220-3-MT

Condition : Used

Manufacturer : Hardinge

Controller : FANUC 18i

Spindle Speed : 6,000 t/min

Model : RS 65 SP MSY

Nb Of Axis : 4 Axis

Year(s) : 2008

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Z-Axis Travel: 638 mm
X-Axis Travel: 189 mm
Y-Axis Travel: +50.8 / -34.0 mm
C Axis
Control Type: FANUC 18i
Bar Passage: 63 mm
Spindle Speed: up to 6,000 t/min
Spindle Nose: A2-6
Spindle Motor: 22 kW
Turret Positions: 12 driven tools
3-Jaw Chuck Diameter: 200 mm
3-Jaw Chuck Diameter: 165 mm
Set of Collets: 25C
Part Separator
Chip Conveyor
Unloading Device
Driven Tool Holder Radial: 2
Driven Tool Holder Axial: 4
Fixed Tool Holders: 34
Tool Measuring Device
Measuring Feeler Gauge
Centre Height: 1,041 mm
Machine Weight: 7,200 kg
Overall Length: 2,286 mm
Overall Width: 1,981 mm
