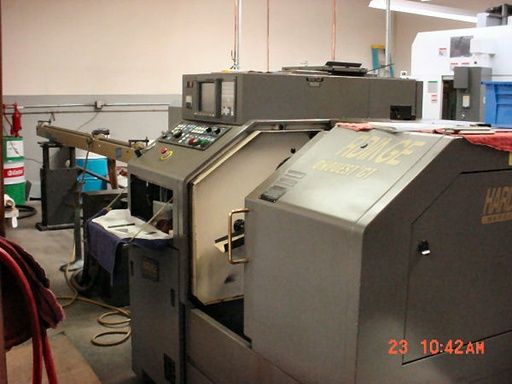

Hardinge Fanuc 18T 6000 RPM GT-27 2 Axis

Hardinge GT-27
1998

CAPACITIES
Maximum Diameter Bar Capacity: 1.062″
Threading Diameter: 9.1″
Fixture Diameter: 6″
Swing Over Way Cover: 11.76″
Swing Over Tooling Top Plate: 2.654″
Collet System: 5C
Collet Closer Stroke: 0.5″
Maximum Allowable Weight on Spindle: 75 lbs
Distance Spindle Face to Top Plate: 11.259″

SPINDLE
Speed: 6,000 RPM
Nose: A2-4
Motor: 5 HP
Torque: 17.4 ft-lb
Spindle Centering Height: 42.25″

TRAVELS
X Axis: 11.968″
Z Axis: 11.062″

RAPID TRAVERSE RATES
X Axis: 472 IPM
Z Axis: 630 IPM

TOOLS (GANG TYPE)
Number of Tool Positions: Part Dependent
Square Shank Tool Size (Maximum): 0.5″
Round Shank Tool Size (Maximum): 0.75″

GENERAL
Electrical Requirements: 230V / 60Hz / 3-Phase
Machine Dimensions (L x W x H): 70″ x 58.7″ x 62″
Machine Weight (Approximate): 5,700 lbs

Equipped With (subject to buyer verification):
Haramatic Single Tube Hydraulic Bar Feed
Parts Catcher
Parts Counter
