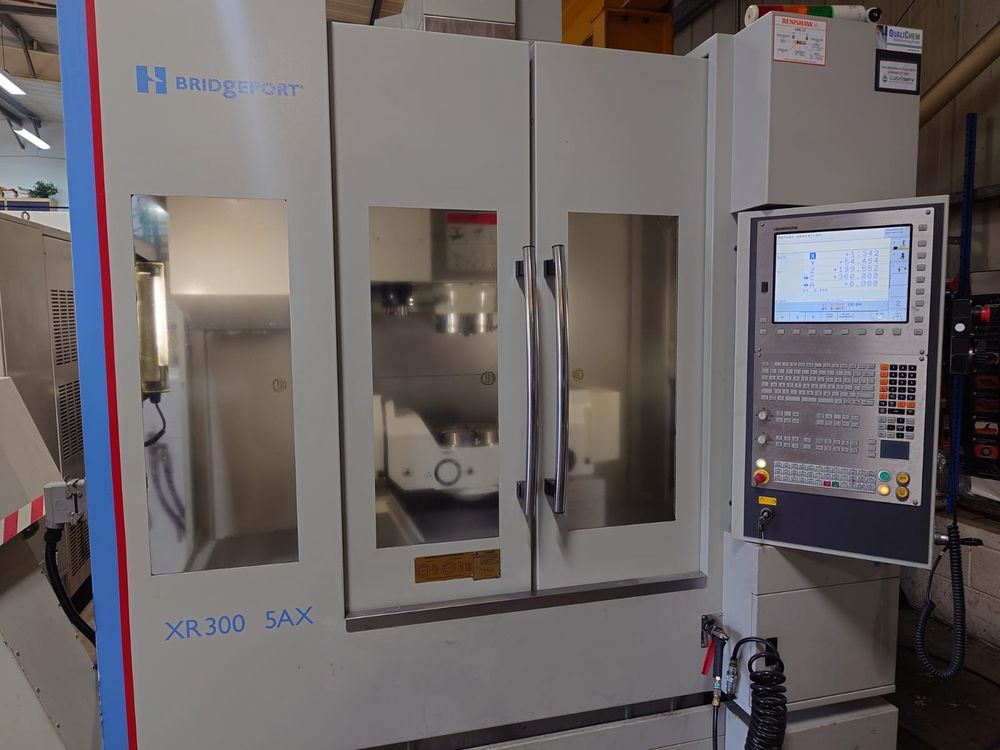

Hardinge XR300 5AX 4 Axis

Hardinge XR300 5AX
2013

Heidenhain 530i Control
X travel 410 mm
Y travel 610 mm
Z travel 500 mm
A-axis travel -30 to +120 degrees
C-axis travel 360 degrees
Maximum swing diameter 300 mm
Rapid traverse X/Y/Z 36 m/min
Rapid rotation A/C 25 rpm
Table diameter 300 mm
Spindle speed 12,000 rpm
Spindle taper BT40
Automatic tool changer 48 stations
Renishaw probe
Spindle chiller
Swarf conveyor
Machine dimensions 2990 x 2880 x 2990 mm
Machine weight 8100 kg
