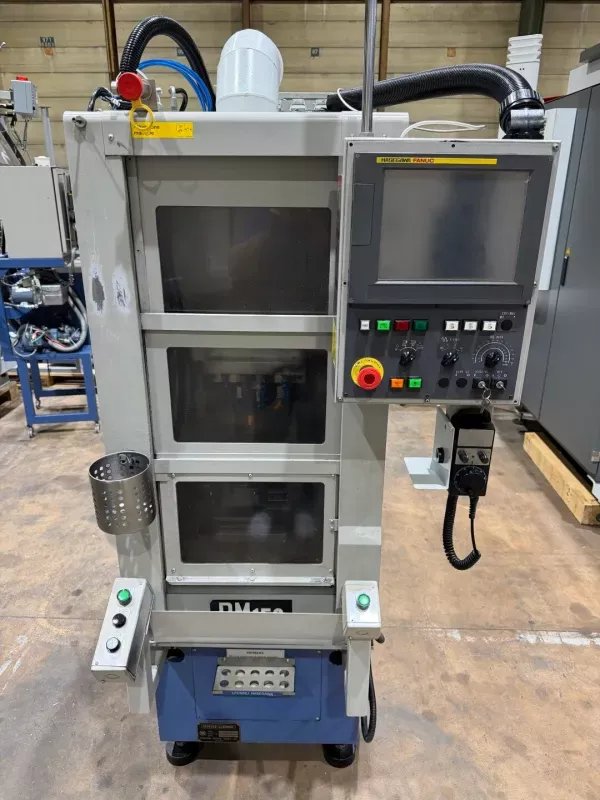

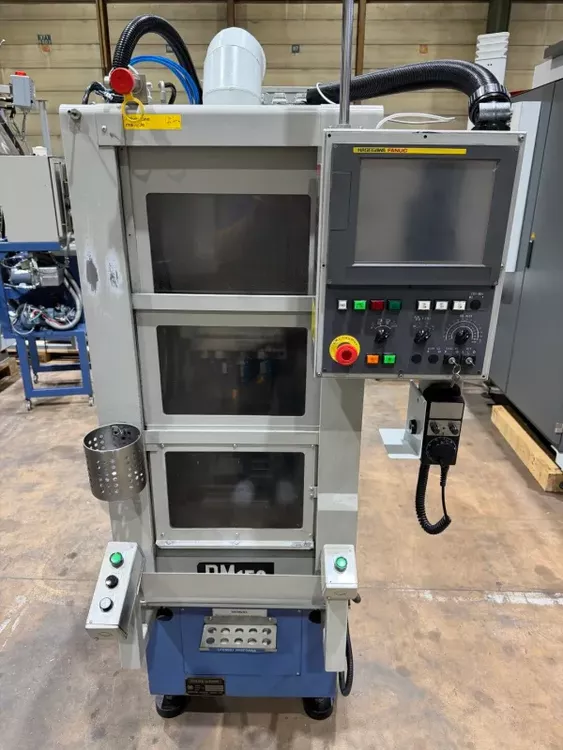

Hasegawa PM150 Vertical 30,000 rpm

Ref : 2766620-3-AW

Condition : Used

Manufacturer : Hasegawa

Model : PM150

Type : Vertical

Spindle Speed : 30,000 rpm

Year(s) : 2012

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-Axis Travel: 150 mm
Y-Axis Travel: 225 mm
Z-Axis Travel: 200 mm
Number of Axes: 4
Swivel Axis: Yes
Rapid Traverse X/Y/Z: 30 m/min
Control Memory Capacity: 5120 m / 2048 kB
Smallest Input Unit: 0.1 µm
Interface: RS232C
Number of Programs: 63
Tool Offset Pairs: 32
Table Size: 300 × 260 mm
Maximum Table Load: 80 kg
T-Slot Table: 12H7 × 5
Spindle Taper: HSK E32
Spindle Speed Range: 100–30,000 rpm
Tool Magazine Capacity: 10 tools
Maximum Tool Diameter: Ø50 mm
