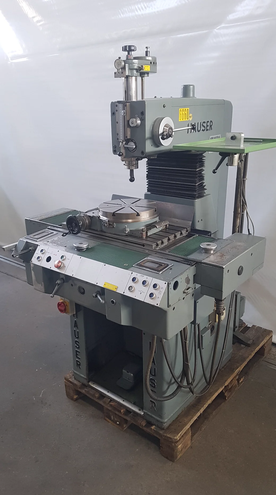

Hauser OP 3 75 mm 3,000 RPM (Stepless)
Ref :
2804596-3-CP
Condition :
Used
Manufacturer :
Hauser
Model :
OP 3
Spindle Size :
75 mm
Spindle Speed :
3,000 RPM (Stepless)
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Jig boring machine
Table Size: 550 × 320 mm
X-Axis Travel: 400 mm
Y-Axis Travel: 250 mm
Z-Axis Travel: 400 mm
Drilling Capacity in Steel: 20 mm
Maximum Boring Diameter: 75 mm
Distance from Table to Spindle: 600 mm
Spindle Taper: MT2
Spindle Stroke: 130 mm
Spindle Speed: 120–3,000 RPM (Stepless)
Feed Steps: 2
Spindle Motor: 1 CV
Power Supply: 3 × 380 V, 50 Hz
Machine Weight: Approx. 1,500 kg
Machine Dimensions: 1,400 × 1,500 × 2,100 mm
Features / Equipment
Tool Cabinet
Drill Chuck
Set of Drills
Set of Milling Cutters
